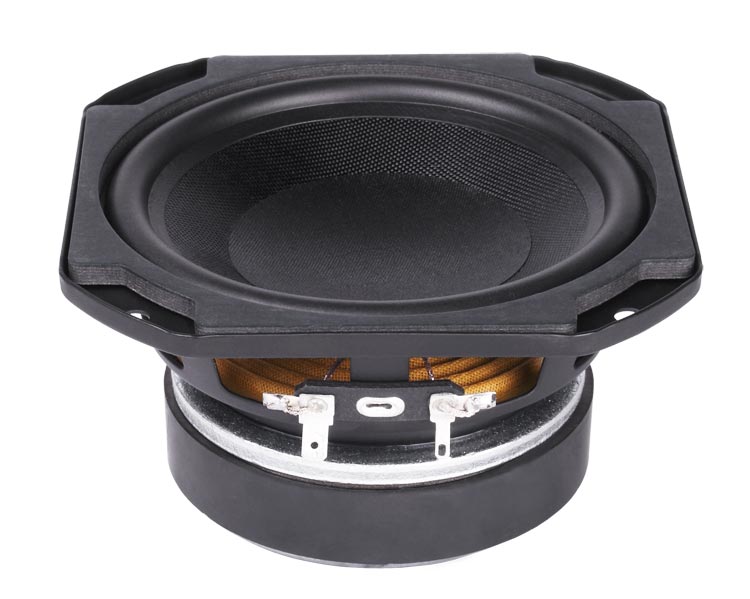

Faital Pro 5FE 120
80 RMS 5" Mid-Bass Speaker
$349.00TT
Price VAT Inclusive
Description
Specifications
Description
| Nominal Diameter | 130 mm (5 in) |
| Overall Diameter | 144.8/124.5 mm (5.7/4.9 in) |
| Bolt Circle Diameter | 133 mm (5.24 in) |
| Baffle Cutout Diameter | 114 mm (4.49 in) |
| Depth | 71.5 mm (2.81 in) |
| Flange and Gasket Thickness | 6.5 mm (0.25 in) |
| Net Weight | 1.13 Kg (2.5 lb) |
| Shipping Box (Single Carton Box – 8 units) | 302 x 275 x 186 mm (11.9 x 10.8 x 7.3 in) |
| Shipping Weight (8 units) | 10.2 Kg (22.5 lb) |
Technical Parameters
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.2 Ohm |
| AES Power Handling (1) | 80 W |
| Maximum Power Handling (2) | 160 W |
| Sensitivity (1W/1m) | 88 dB |
| Frequency Range | 63÷6300 Hz |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Winding Material | Cu |
| Former Material | Kapton |
| Winding Depth | 12.5 mm (0.49 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Basket Material | Steel |
| Demodulation | Aluminum Ring |
| Cone Surround (3) | Half Roll |
| NET Air Volume filled by Loudspeaker | 0.3 dm^3 (0.011 ft^3) |
| Spider Profile | 1x constant height waves |
Specifications
Thiele and small parameters
| Fs | 65 Hz |
| Re | 5.4 Ohm |
| Qes | 0.51 |
| Qms | 7.4 |
| Qts | 0.48 |
| Vas | 5.4 dm^3 (0.19 ft^3) |
| Sd | 84 cm^2 (13.07 in^2) |
| Xmax (4) | 5.25 mm |
| Xdamage (5) | 9.5 mm |
| Mms | 11.0 g |
| Bl | 6.9 N/A |
| Le | 0.41 mH |
| Mmd | 10.1 g |
| Cms | 0.55 mm/N |
| Rms | 0.6 Kg/s |
| Eta Zero | 0.28 % |
| EBP | 127 Hz |
