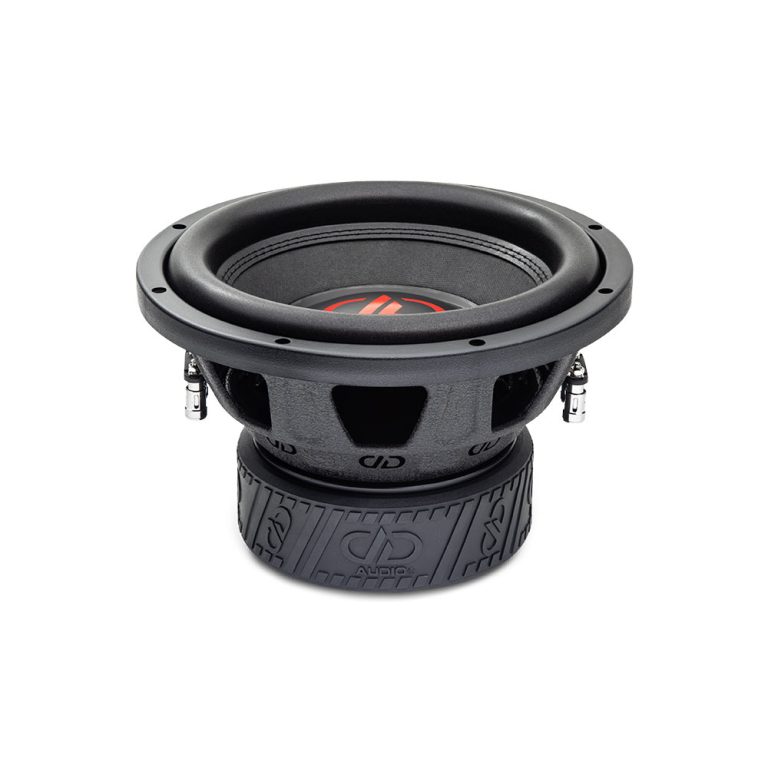

DIGITAL DESIGNS 610 D
300-600 RMS 10" Subwoofer
$1,649.00TT
$1,549.00TT
SALE Price, Cash or Linx Only!
Specifications
Specifications
Series The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 300-600 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.
608d | 610d | 612d | 615e | |
---|---|---|---|---|
Speaker Size (In): | 8 | 10 | 12 | 15 |
Speaker Size (MM): | 203.2 | 254 | N/A | N/A |
Watts RMS: | 300 – 600 | 300 – 600 | 300 – 600 | 500 – 800 |
Watts Peak: | 1800 | 1800 | 1800 | 2400 |
Impedance: | D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4 |
VCD (In): | 2.5 | 2.5 | 2.5 | 2.5 |
VCD (MM): | 63.5 | 63.5 | N/A | N/A |
Piston Diameter (In): | 6 3/8 | 8 | 10.25 | 13 |
Piston Diameter (MM): | 161.925 | 203.2 | N/A | N/A |
Fs (Hz): | 38.36 | 34.99 | 33.65 | 33.6 |
Qms: | 5.758 | 6.114 | 5.521 | 4.327 |
Qes: | 0.4991 | 0.5562 | 0.686 | 0.524 |
Qts: | 0.4593 | 0.510 | 0.61 | 0.468 |
Vas (Liters): | 7.377 | 17.01 | 44.15 | 82.36 |
Xmech (In): | 2.51969 | 2.520 | N/A | N/A |
Xmech (MM): | 64 | 64 | 64 | 60 |
Xmax (In): | 0.511811 | 0.433 | N/A | N/A |
Xmax (MM): | 13 | 11 | 13 | 14 |
Frame OD (In): | 8 5/16 | 10 1/8 | 12 1/4 | 15 3/16 |
Frame OD (MM): | 211.137 | 257.175 | N/A | N/A |
Frame OD w/ Gasket (In): | 8 1/2 | 10 3/8 | 12 1/2 | 15 7/16 |
Frame OD w/ Gasket (MM): | 215.9 | 263.525 | N/A | N/A |
Mounting Diameter (In): | 7 3/8 | 9 3/16 | 11 1/8 | 13 7/8 |
Mounting Diameter (MM): | 187.325 | 233.362 | N/A | N/A |
Mounting Depth (In): | 5 3/4 | 5 1/2 | 6 1/16 | 7 1/16 |
Mounting Depth (MM): | 146.05 | 139.7 | N/A | N/A |
Motor Diameter (In): | 6 1/2 | 6 1/2 | 6 1/2 | 7 |
Motor Diameter (MM): | 165.1 | 165.1 | N/A | N/A |
Motor Depth (In): | 2 1/2 | 2 1/2 | 2 1/2 | 2 7/8 |
Motor Depth (MM): | 63.5 | 63.5 | N/A | N/A |
Woofer Displacement (CuFt): | 0.07 | 0.08 | 0.09 | 0.11 |
Woofer Displacement (Liters): | 1.982 | 2.265 | N/A | N/A |
Ported Enclosure (CuFt): | 0.75 – 1.25 | 1.25 – 1.5 | 1.75 – 2.75 | 3.0 – 6.0 |
Ported Enclosure (Liters): | 21.238 – 35.396 | 35.396 – 42.475 | N/A | N/A |
Shipping Weight (Lbs): | 17 | 18 | 18 | N/A |
Shipping Weight (Kg): | 7.711 | 8.165 | N/A | N/A |
