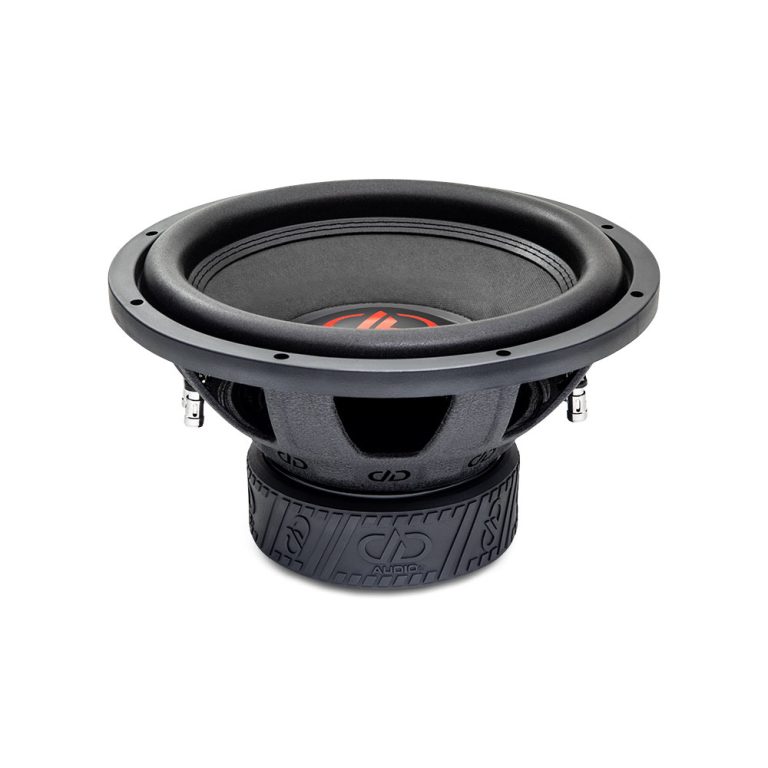

DD AUDIO
312E
500 RMS 12" SUBWOOFER
$1,599.00TT
Price VAT Inclusive
Descriptions
Specifications
Descriptions
The all new 300 Series “e” revision comes to us with 10” and 12” models featuring 2.5” voice coils and 100oz magnet motors. These new drivers bring increased sensitivity, Xmax, and excursion control to deliver powerful bass from higher efficiency enclosures on 250 to 500 Watts RMS. Upgrades to this series include cones with fiberglass loaded non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual layer spiders with integrated tinsel leads, and new basket and motor boot designs elevating cosmetics with DD branding.
Features
- Free Flow Cooling System
- High-temp Voice Coil
- Dual Layer Spider System With Integrated Tinsel Leads
- Extended Pole Piece
- DD Logo Basket
- Double Stitched EROM Surrounds
- Fiberglass Loaded Non-Pressed Cones
- Embossed DDesign Magnet Boot
- 500W RMS
Specifications
310e 312e Speaker Size (In): 10 12 Watts RMS: 500 500 Watts Peak: 1500 1500 Impedance: D2 / D4 D2 / D4 VCD (In): 2.5 2.5 Piston Diameter (In): 8 10 Fs (Hz): 39 37 Qms: 5.18 5.44 Qes: 0.688 0.73 Qts: 0.61 0.64 Vas (Liters): 11.43 22.31 BL (TM): 25 26 Xmech (MM): 30 30 Xmax (MM): 14 14 Frame OD (In): 10 12.125 Frame OD w/ Gasket (In): 10.4 12.4 Mounting Diameter (In): 8.93 11.02 Mounting Depth (In): 6.53 7.32 Motor Diameter (In): 6.14 6.69 Motor Depth (In): 2.59 2.59 Magnet Weight (Oz): 100 100 Woofer Displacement (CuFt): 0.07 0.1 Ported Enclosure (CuFt): 1.25 – 1.5 1.75 – 2.75 Shipping Weight (Lbs): 17.5 19 MSRP (USD): 179 each 189 each
