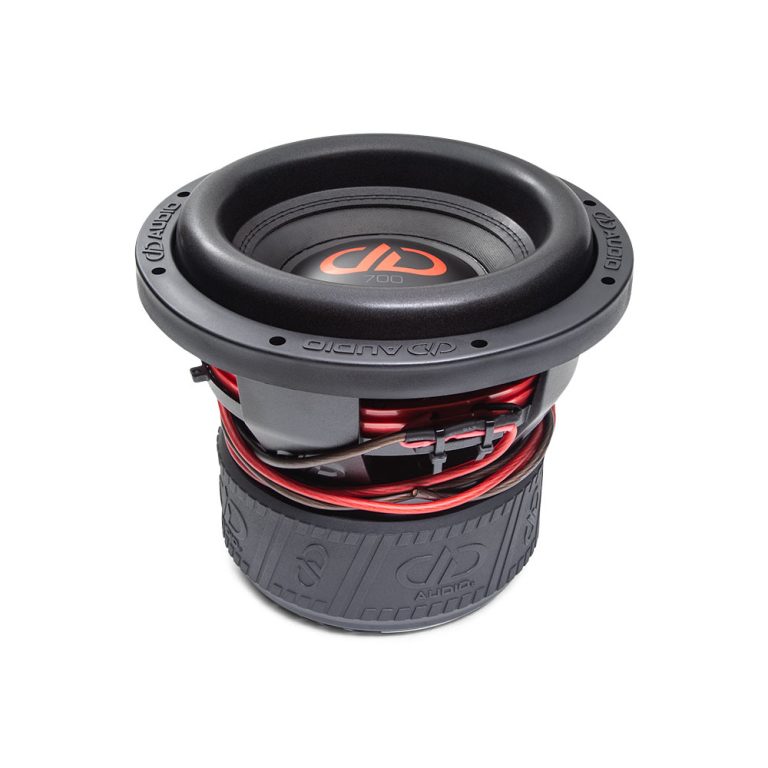

DIGITAL DESIGNS 710D
600-1200 RMS 10" Subwoofer
$3,499.00TT
$2,999.00TT
SALE Price, Cash or Linx Only!
Description
Specifications
Description
The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty in vented or multi-order enclosures.
Features:
- EROM surround
- High-temp, 3.0”, voice coil
- Triple layer Deep bass, high excursion spider system
- Unique glass fiber and natural pulp cone
- Back plate coil gap venting
- Extended pole piece
- DD cast basket
Specifications
| 710D | 712D | 715D | ||
|---|---|---|---|---|
| Driver Size (In): | 10 | 12 | 15 | 18 |
| Watts RMS: | 600 – 1200 | 600 – 1200 | 600 – 1200 | 600 – 1200 |
| Peak Power: | 3600 | 3600 | 3600 | 3600 |
| VCD (In): | 3 | 3 | 3 | 3 |
| Impedance: | D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4 |
| Piston Diameter (In): | 8 1/2 | 10 1/4 | 12 3/4 | 15 1/2 |
| Fs (Hz): | 28.53 | 28.26 | 31.63 | 26.92 |
| Qms: | 3.786 | 4.344 | 5.485 | 6.79 |
| Qes: | 0.350 | 0.4823 | 0.5964 | 0.567 |
| Qts: | 0.321 | 0.4341 | 0.5379 | 0.5233 |
| Vas: | 21.42 | 39.64 | 70.17 | 170.4 |
| Xmech (MM): | 80 | 80 | 80 | 80 |
| Xmax (MM): | 14 | 14 | 16 | 16 |
| Frame OD (In): | 10 5/8 | 12 5/8 | 15 3/8 | 18 3/8 |
| Frame OD w/ Gasket (In): | 10 3/4 | 12 7/8 | 15 9/16 | 18 1/2 |
| Mounting Diameter (In): | 9 5/16 | 11 3/8 | 13 7/8 | 16 5/8 |
| Mounting Depth (In): | 7 1/8 | 8 9/16 | 9 1/8 | 10 1/2 |
| Motor Diameter (In): | 7 3/4 | 7 3/4 | 7 3/4 | 7 3/4 |
| Motor Depth (In): | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 |
| Woofer Displacement (CuFt): | 0.14 | 0.17 | 0.22 | 0.25 |
| Sealed Enclosure (CuFt): | N / A | N/A | N/A | N/A |
| Ported Enclosure (CuFt): | 1.25 – 1.5 | 1.75 – 2.75 | 3.0 – 5.0 | 6.0 – 8.0 |
| Shipping Weight (Lbs): | 36 |
