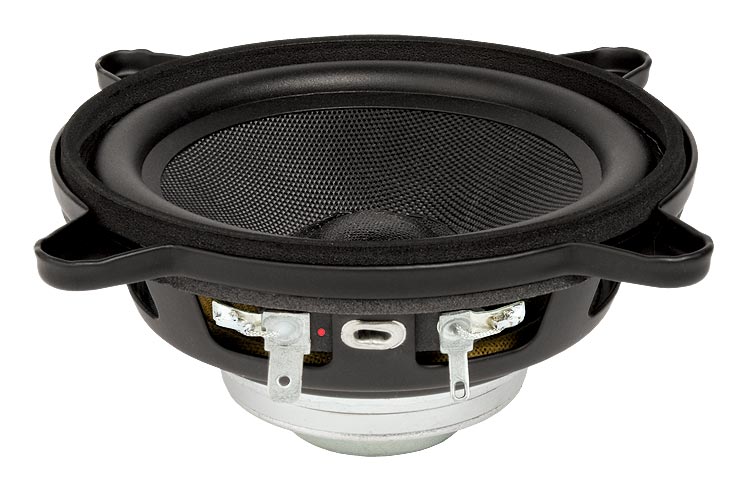

FAITAL PRO 4FE32
30 RMS 4" Full-Range Speaker
$335.00TT
$ 299.00 TT/ Each
Sale Price, Cash or Linx ONLY!!
Description
Specifications
Description
- THE FAITAL PRO 4FE32 4″ FULL-RANGE SPEAKER CAN HANDLE 30 WATTS AES & 60 WATTS PROGRAM POWER
- EFFICIENCY OF 91DB SPL & WEIGHS ONLY .6 LBS. THANKS TO ITS’ LIGHTWEIGHT NEODYMIUM MAGNET
- MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
- WORKS GREAT FOR UPPER BASS, MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
- ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
Specifications
| Nominal Basket Diameter | 4” / 100mm |
| Impedance | 4, 8,16 ohms |
| AES Power Rating | 30 Watts |
| Program Power | 60 Watts |
| Frequency Response | 90Hz – 20.0kHz |
| Sensitivity (1W/1m) | 91dB SPL |
| Voice Coil Diameter | .75″ / 19mm |
| Winding Depth | 6.8 mm |
| Magnetic Gap Depth | 4 mm |
| X Damage (peak to peak) | 6.8 mm |
| BL Factor | 4.8 N/A |
Mounting Information | |
| Overall Diameter | 5.13“/3.9” / 129.85mm / 100.5mm |
| Bolt Circle Diameter | 4.54” / 115.26mm |
| Baffle Cutout Diameter-Front Mount | 3.6″ / 91.5mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 1.96” / 49.8mm |
| Flange & gasket Thickness | 0.28″ / 7.2mm |
| Net Weight | .6 lb. / .27 kg. |
Materials | |
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Suspension | Half Roll |
| Former Material | Kapton |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
Thiele-Small Parameters | |
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 6.5 ohms |
| Coil Inductance (Le) | 0.18 mH |
| Mechanical Q (Qms) | 4.9 |
| Electrical Factor (Qes) | .6 |
| Total Q (Qts) | .5 |
| Comp. Equivelant Vol. (Vas) | 0.014 ft3 / 4.0 Liters |
| Voice Coil Overhang (Xmax) | 2.73 mm |
| Surface Area of Cone (Sd)m2 | 0.048m2 |
| Reference Efficiency | .55% |
| Diaphragm Mass (Mms) | 4.2 Grams |
| Mechanical Compliance (Cms) | .6 mm/N |
| Mechanical Resistance (Rms) | .45 Kg/s |
