Provide input signal for your amp

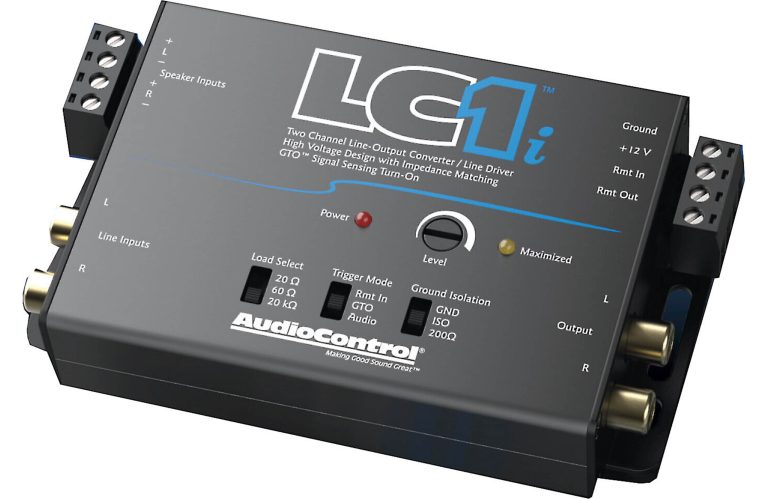

Aftermarket amplifiers and DSP sound processors need clean and strong input signals, whether they come from a receiver’s RCA outputs or a factory amp’s speaker outputs. AudioControl’s LC1i line output converter can produce up to 9.5 volts of preamp-level output in either case, acting as a line driver using its RCA inputs or as a line output converter using the speaker-level inputs.

Works with factory amps

Those speaker-level inputs can handle up to 40 volts, the equivalent of 400 watts, so you can use one in a premium system with a factory amplifier, enabling you to retain all your vehicle’s factory audio options and warnings. The LC1i’s level control with a Maximized LED indicator help you to keep the signal strong, as well as under control and distortion-free.

Product highlights:

• • • active 2-channel line driver/output converter
    • designed to work with aftermarket and factory systems
    • provides up to 9.5 Vrms output
    • preamp and speaker-level inputs
      • speaker-level inputs handle up to 40V (400 watts RMS)
    • auto turn-on via DC offset or audio detect
    • level control and Maximized LED indicator

More Info:

• • load selection switch for OEM integration (20, 60, or 20,000 ohms)
  • 12-volt turn-on lead output
  • speaker-level inputs feature switchable load resistance to prevent factory stereo shut-down
