DD AUDIO M8000
8000 RMS Monoblock Amplifier
$13,000.00TT
Price VAT Inclusive
The slightly revised M8000 is our 6th generation M Series high current amplifier circuit, getting enhancements developed for the Z12000 amplifier. This latest revision adds design elements for extended reliability and durability. We beefed up internal high current pathways and tooled new end panels to increase airflow through the amplifier. The internal fan can pull more air through the PCB even when mounted on carpeted or padded surfaces.
The M8000 circuit uses the latest in ultra high current devices, increasing the total current available over the 5th gen M amp designs. These high current, half bridge amps are more compact, lighter and pack more punch than any previous M Series. The bass hits harder and transients are even cleaner, True To The Source.
Be sure to check out the app controlled LED Vanity Plates available for the M2500, M5000, and M8000!
Features
- Optimized Über High Current Power Supply
- ZVL Linking Module Input
- 24dB/Oct Bandpass Filters
- Custom Vanity Plate Ready

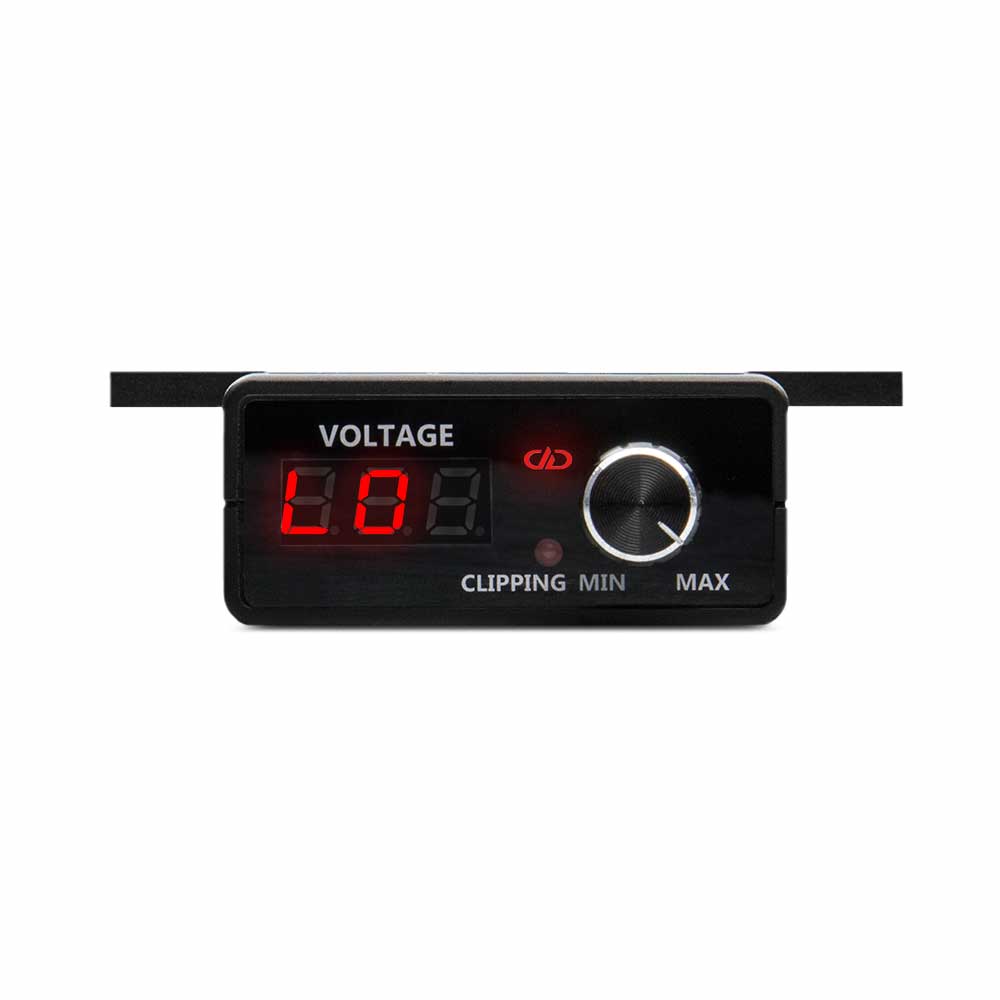

- Remote / LCD Voltage Display and Clipping Indicator
| Operating Voltage: | 9 – 16 |
| Test Voltage: | 14.4 |
| Output Channel(s): | 1 |
| Continuous Wattage @4ohm: | 3000 |
| Continuous Wattage @2ohm: | 5000 |
| Continuous Wattage @1ohm: | 8000 |
| Dynamic Wattage: | 10500 |
| Max Current Draw (Amps): | 800 |
| RCA Input Voltage Sensitivity: | 8 – 0.2 |
| RCA Input S/N: | > 92dB |
| Damping Factor: | > 400 |
| THD: | < 0.2% |
| Frequency Response (Hz): | 10 – 200Hz |
| Sub-Sonic Filter: | 10 – 50Hz |
| Low-Pass Filter: | 20 – 200Hz |
| ZVL Input: | Yes |
| Pass Thru Output: | No |
| Remote Control: | Remote Included in Box |
| Power Wire Gauge: | 3 x 0 |
| Speaker Wire Gauge: | 10 |
| Dimensions (Inches): | 17.75 x 9 x 2.85 |
| Dimensions (MM): |
