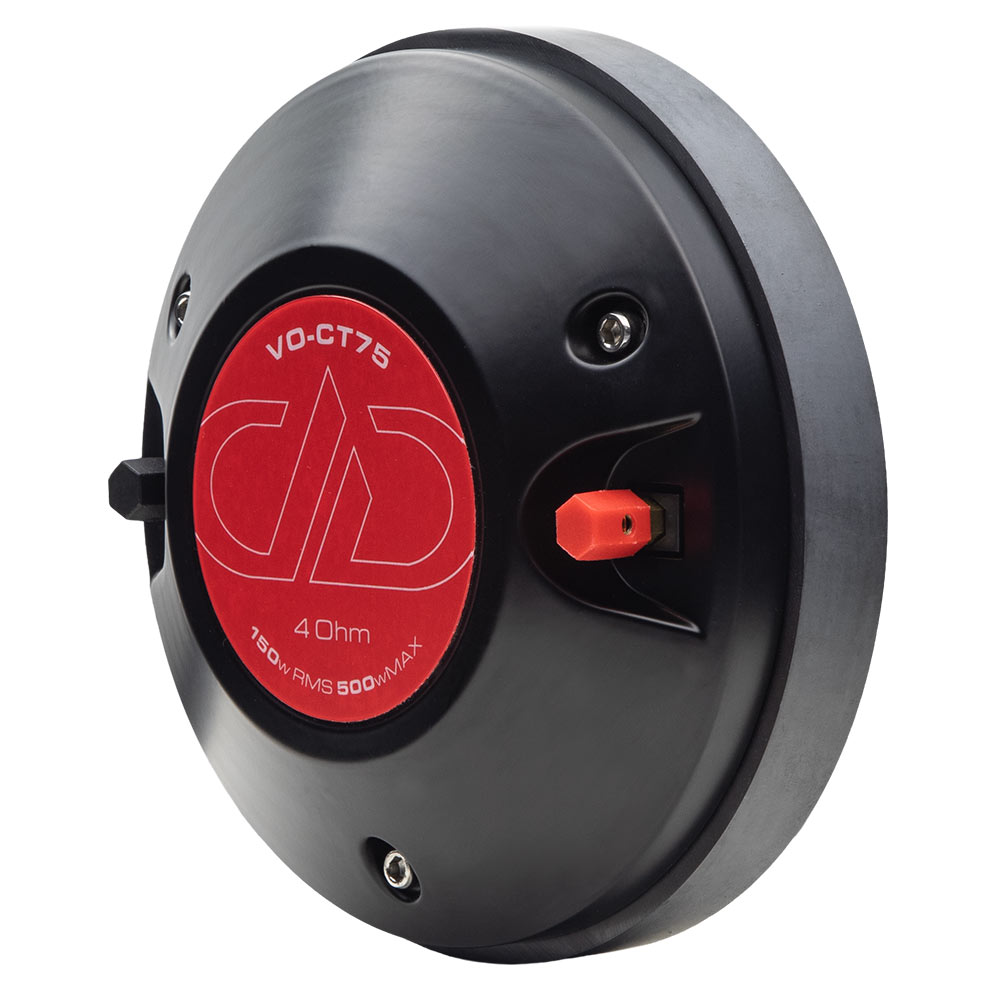

DD AUDIO VO-CT75
150 RMS 1.4" Bolt on Driver
$1,099.00TT
Price VAT Inclusive
Description
Specifications
Description
The VO-CT75 compression driver is a bolt on, 1.4 inch throat with a 3 inch voice coil diameter. This driver covers the frequency range from where our VO mid-range and woofers leave off to 20kHz. The CT75 delivers natural midrange and vocal clarity with crystal clear highs while allowing a lower crossover point than the CT45.
The motor uses CnC machined parts resulting in a close tolerance, high magnetic strength motor driving a 3.0” high-temperature voice coil connected to a highly rigid titanium diaphragm.
Combine with the VO-CT8x8 high grade ABS plastic horn for the ultimate PA build.
- 3.0” Voice Coil
- Titanium Diaphragm
- 1.4” Throat, Bolt On Horn
- 110 dB Sensitivity
- 400 Watts Program Power Handling
- 500 to 20,000Hz Frequency Range
Specifications
VO-CT75: 150W to 500W – 3 inch Compression Tweeter
| Watts RMS: | 150 |
| Program Power (Watts): | 500 |
| Impedance: | S4 |
| VCD (In): | 3 |
| Frequency Response (Hz): | 500 – 20k |
| dBSPL: | 110 |
| Mounting Diameter (In): | (with 8×8 horn) 8.25 |
| Mounting Depth (In): | (with 8×8 horn) 8.5 |
| Dimensions (Inches): | (Without 8×8 horn) 6.75 x 2.325 |
| Price (USD): | 139 each |
