Type

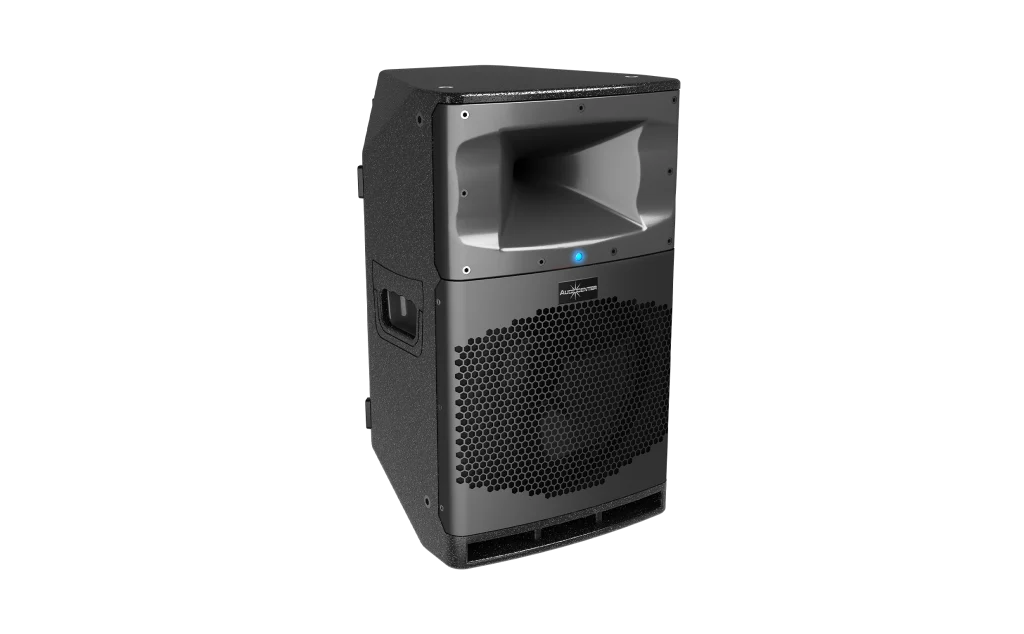

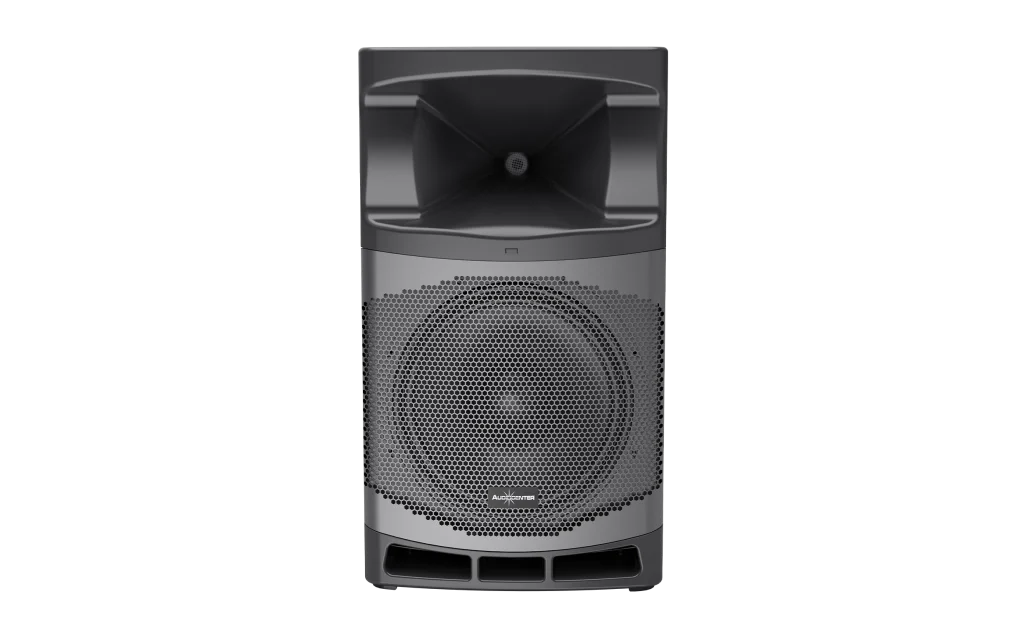

Portable Active DSP-controlled Loudspeaker

Frequency Response(-10dB)

50Hz-20kHz

Horizontal Coverage

80°

Vertical Coverage

50°

Maximum Calculated SPL/1M (Continuous/Peak)

125dB/131dB

HF Driver

Customized driver, 1.4” voice coil and 1.0”exit

LF Driver

Customized 12” driver, 2.5” voice coil

DSP

Processor

48kHz signal sampling frequency

Presets

/

AMPLIFIER

Amplifier Circuitry

Class D

Power (RMS standards)

800W

Peak Power

1600W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion

＜0.05%

Total Harmonic Distortion

＜0.05%

Cooling System

Cooling with fans, air convection

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Signal Input

2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Mini jack 3.5

Signal Output

Male XLR

Power Input

IEC power connector

Working Voltage

100-240V~ (±10%，50/60Hz）

Power consumption (1/8 output power)

55W

CABINET

Cabinet Material

New polypropylene composite material

Cabinet Color

Black is the default color

Grille

Iron mesh

Handles

2 side,1 top

Monitor Angle

Symmetrical 45° monitor angle

Hanging Hardwares

M8 screw

Pole Mount

Base hole Φ35mm

Speaker Dimension (W×H×D)

345×610×352mm

Carton Dimension (W×H×D)

405x680x405mm
