ARC AUDIO

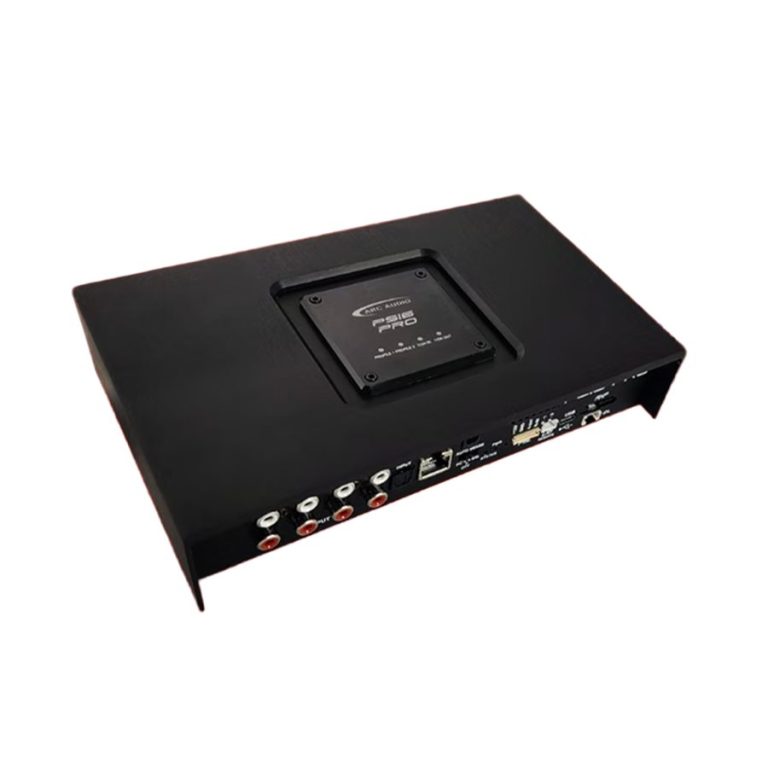

PS16-PRO
16-Channel Pro-Series Stand-Alone DSP w/ Maestro
$7,599.00TT
Price VAT Inclusive
PS16-Pro: Maximum Channel Count for Ultimate System Mastery
The PS16-Pro stands as the pinnacle of ARC Audio’s Pro-Series DSP lineup, delivering 16 output channels designed to meet the demands of the most complex OEM audio systems and multi-channel reference builds. Sharing the same rugged chassis and core Analog Devices ADAU1462 DSP processor as the PS8-Pro and PS12-Pro, the PS16-Pro expands your system’s control with four additional channels to fully unlock every speaker location.
Engineered with dual AKM Velvet Sound ADCs and DACs, the PS16-Pro processes high-resolution audio signals up to 192kHz at 32-bit end-to-end resolution, offering pristine clarity and exceptional dynamic range across all channels.
Paired with ARC Audio’s DNA Tuning Software, the PS16-Pro provides exhaustive EQ options, ultra-fine delay control, flexible routing, and advanced crossover configurations—empowering installers and audiophiles to craft perfect soundscapes in even the most demanding vehicles.
OEM integration is seamless, featuring broad input compatibility, intelligent signal sensing, and full support for iDatalink Maestro AR modules—ensuring plug-and-play installation in a wide range of factory-amplified vehicles.
For those who require the ultimate in channel count and sonic precision, the PS16-Pro delivers unmatched flexibility and control—the definitive choice for high-end, multi-channel audio mastery.
| Processor Type | Stand-Alone Unit |
| Processor Resolution | Fixed Point Native 32-Bit |
| Main DSP Processor | Analog Devices ADAU1462 |
| ADC (Analog to Digital Converter) | (Dual) AKM Velvet Sound 5558B |
| DAC (Digital to Analog Converter) | AKM Velvet Sound AK4438 |
| Total DSP Channels | 16 |
| Dual Footprint Op-Amp Design | No |
| RCA Channels Out | 16 |
| RCA Output Voltage | Up to 8V |
| Input Channels (Analog) | 8 |
| Input Channels (Analog Type) | Differential (RCA or Speaker Level) |
| Input Sensitivity (Analog) | .5V – 32V RMS |
| Input Impedance (Analog) | 10k Ohms |
| Input Gain Type | “Dedicated” Selection by channel “Pairs” in Input Mixer Utility |
| Optical Input | Toslink |
| Digital Coaxial Input | Yes – Requires D.O.C. Adapter |
| Max Digital Input Sample Rate | 192kHz |
| Frequency Response | 10Hz – 23.5kHz |
| S/N Ratio 1V 1:1 | TBD |
| S/N Ratio 4V 1:1 | TBD |
| S/N Digital | TBD |
| DSP Operating Voltage | 8V – 17.1 (Start Stop Compliant to 4.5V) |
| Auto-Sense Turn-on | Yes – Signal & DC (BTL) (Uses Ch 1/2 Analog Inputs Only) |
| User Defined Presets | Up to 4 |
| Preset Control Without PC Or Controller | Yes – Optional Manual Trigger Switches +/- for up to 4 presets (Not Included) |
| Compatible External Control (Optional) | Yes – PSC or LR-2 (Sold Separately) |
| Dual External Control Use (Optional) | Yes – PSC & LR-2 (Simultaneously) |
| AXP Wifi Control Adapter Card | Optional accessory (Sold Separately) |
| DSP Integrated On/Off Timing Control | Device Turn-on (Up to 40ms), Turn on Hold (Up to 40ms), Auto-sense hold time (up to 200ms) |
| DC Input Jack | Yes |
| External Amplifier Remote “Turn-on Output” On/Off Timing Control | Remote Turn on lead output adjustable from .05 – 40 seconds |
| iDatalink Maestro Amplifier Replacement Interface Capable | Yes – Requires Vehicle compatible replacement module & T-Harness and ARC/iData signal harness adapter |
| iDatalink Maestro Compatibility List | Check here |
| Multi-Processor System Expandability | Yes – Requires each processor be connected with a full-time USB connection to a non-amplified USB hub. Also allows for full control of multiple DSPs with a single PC and GUI |
| Copper Series Matching Trim Package | Yes (Optional Sold Separately) |
| USB Connection Type | USB-C |
| Tuning Software Interface | ARC Audio DNA Only |
| DNA Tuning Software Interface Download | Download here |
| DNA Software Tuning Features | Click here for tuning features |
| Dimensions | 8.5″(L) x 5.1″(W) x 1.81″(H) |
