BEYMA
12 G40

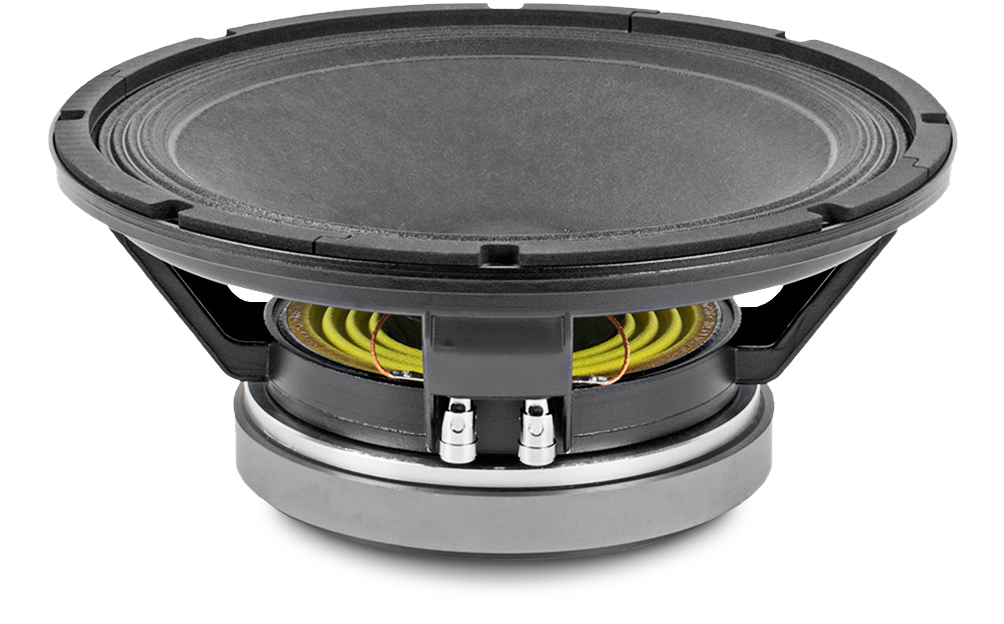

500 RMS 12" Midrange Speaker
$2,100.00TT
Price VAT Inclusive
Specifications
Specifications
Power capacity
500 W AES
Nominal diameter
300 mm 12 in
Nominal impedance
8 Ohm
Minimum impedance
6.7 ohm
Program power
1000 W
Sensitivity
97 dB 1 W @ 1 m @ 2π
Frequency range
45-4000 Hz
Recommended enclosure volume
20 / 70 l 0.7 / 2.6 ft.³
Voice coil diameter
76.2 mm 3 in
BL factor
18.4 N / A
Moving mass
0.062 kg
Winding length
17.5 mm
Air gap height
8 mm
Xdamage pp
28 mm
Parameters Thiele & Small
Fs
44 Hz
Re
6 ohm
Qms
11.6
Qes
0.3
Qts
0.3
Vas
81 l
Cms
206 µm / N
Rms
1.5 kg / s
Efficiency %
2.3
Sd
0.053 m²
Xmax
7 mm
Vd
371 cm³
Le @1 kHz
2.1 mH
Construction details
Depth
133 mm 5.2 in
Net weight
7.1 kg 15.6 lb
Total weight
7.8 kg 17.2 lb
Magnet
