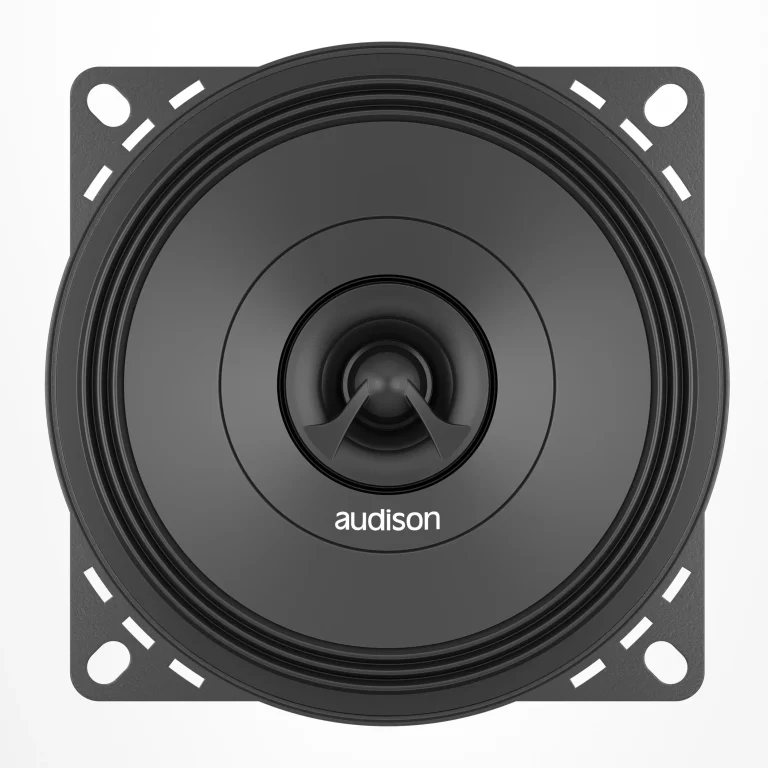

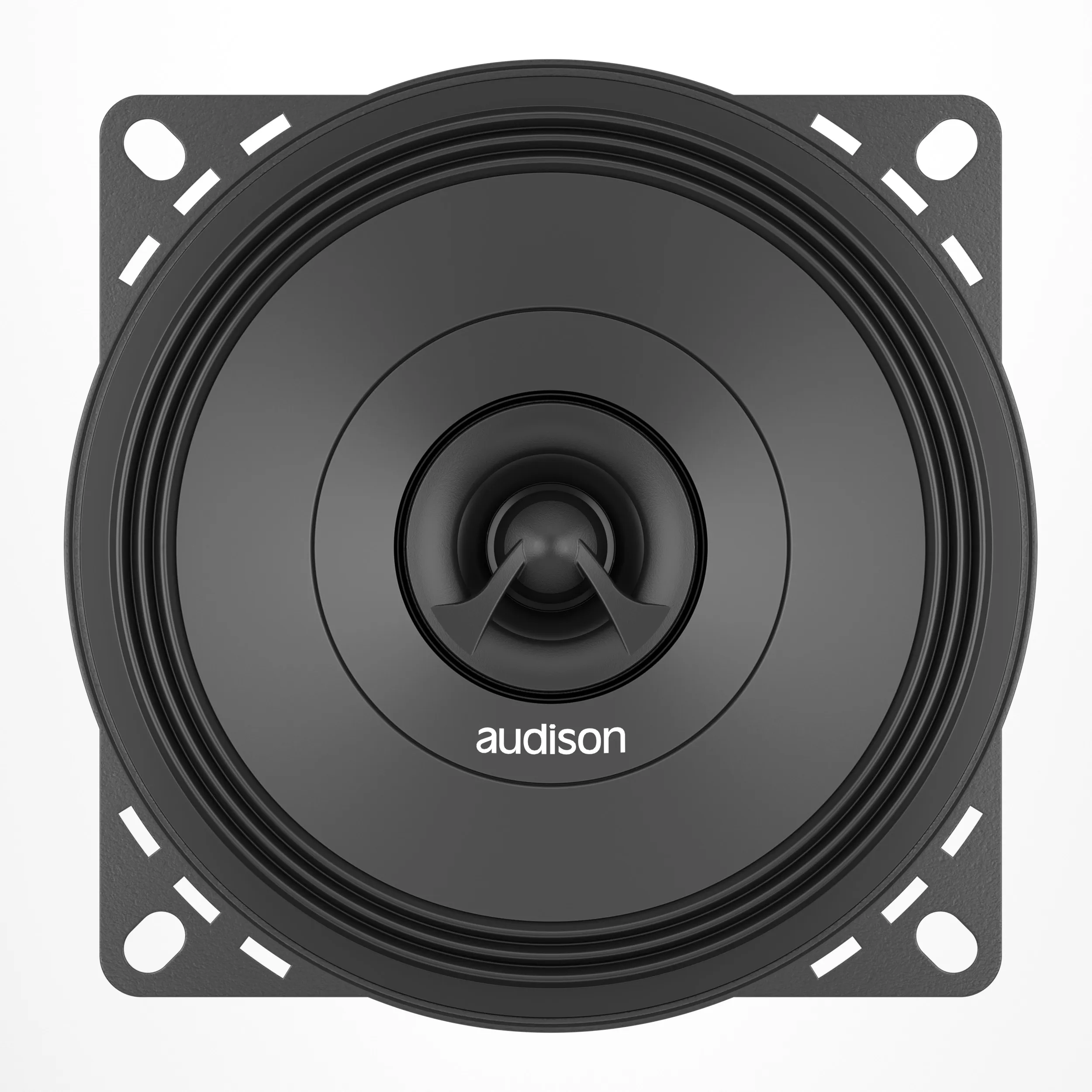

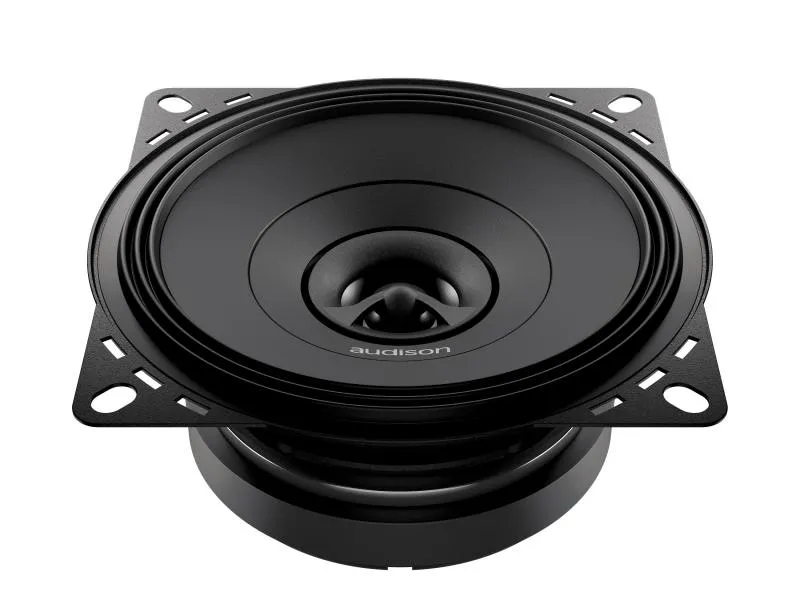

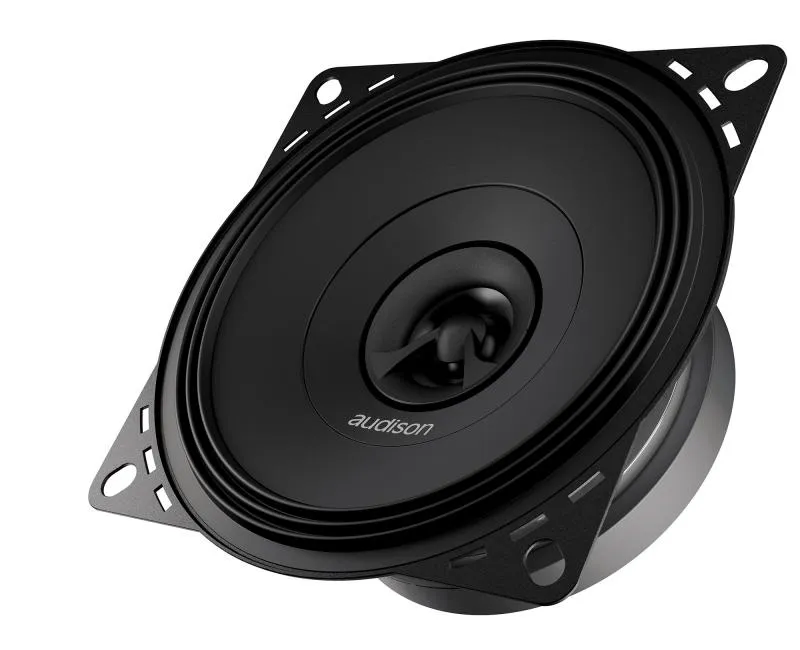

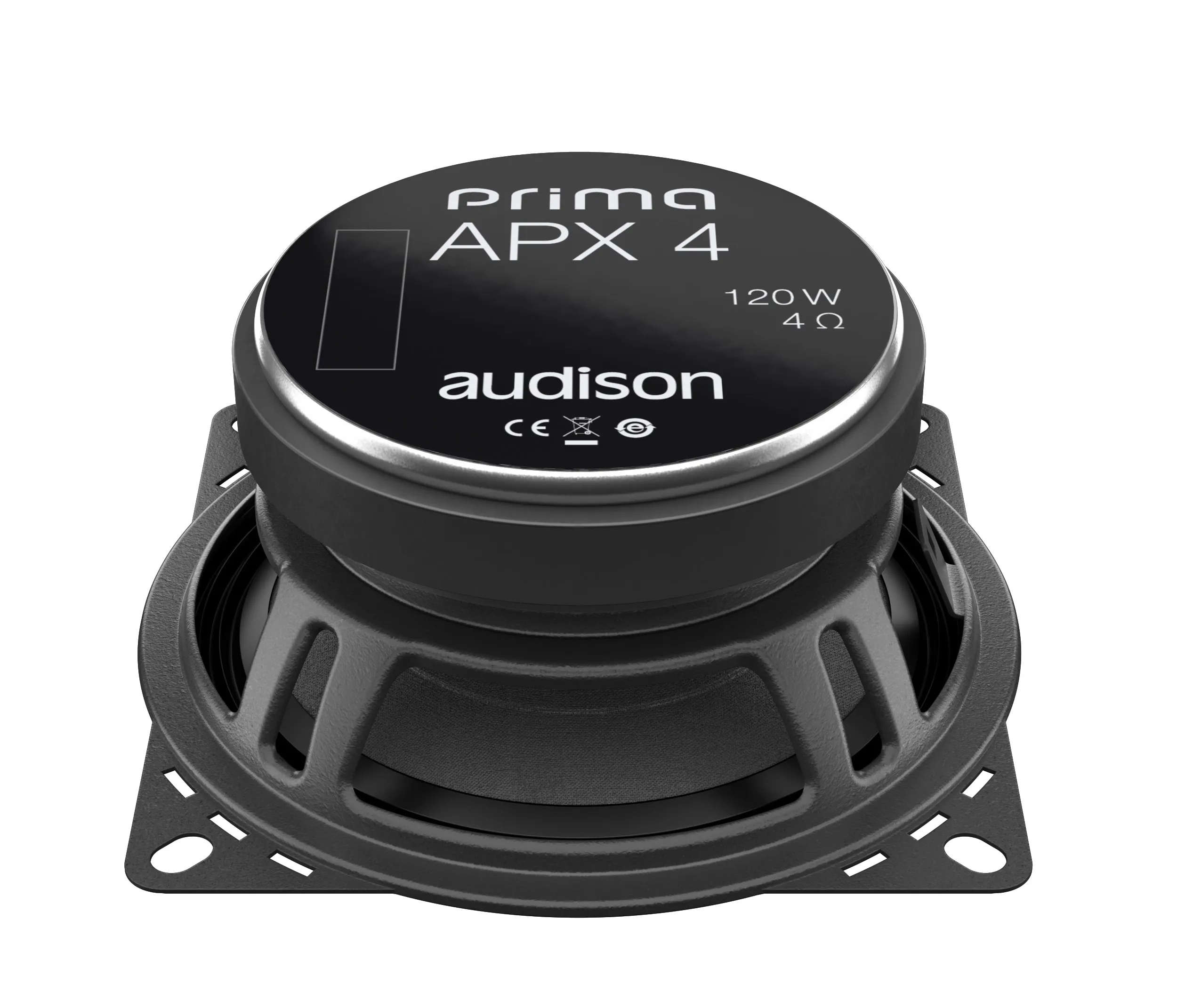

Audison APX4
40 RMS 4"Inch Coaxial Speakers
$ 775.00 TT/Pair
Price VAT Inclusive
Description
Specifications
Description
APX 4 features a concentric coaxial tweeter. With a single point of sound emission, it delivers a consistent in-phase response, enabling accurate reconstruction of the acoustic scene, comparable to a system with a separate woofer and tweeter. The 4″ cone surround features the exclusive shallow Triple Wave profile, ensuring maximum excursion linearity.
Specifications
Technical Specs LF
| Woofer Size | 100 mm |
| Impedance | 4 Ohm |
| Power Handling – Peak | 120 W |
| Power Handling – Continuous | 40 W |
| Sensitivity | 91 dB |
| Frequency Response | 80 ÷ 23k |
| Voice Coil Diameter | 32 mm (0.59 in) |
| Magnet Size | 75 x 40 x 10 |
| Xmax | 1.3 mm (0.05 in) |
Technical Specs HF
| Tweeter Size | 24 mm (0.94 in) |
| Voice Coil Diameter | 15 mm (0.59 in) |
Electric-acoustic Specs
| Re | 3.1 Ohm |
| Fs | 125 Hz |
| Mms | 5.3 g (0.19 oz) |
| Cms | 0.3 |
| Bl | 3.2 |
| Qms | 8 |
| Qes | 1,2 |
| Qts | 1 |
| Vas | 1.5 l (0.05 ft) |
| LE | 0.04 mH |
General
| Weight | 0.49 kg |
