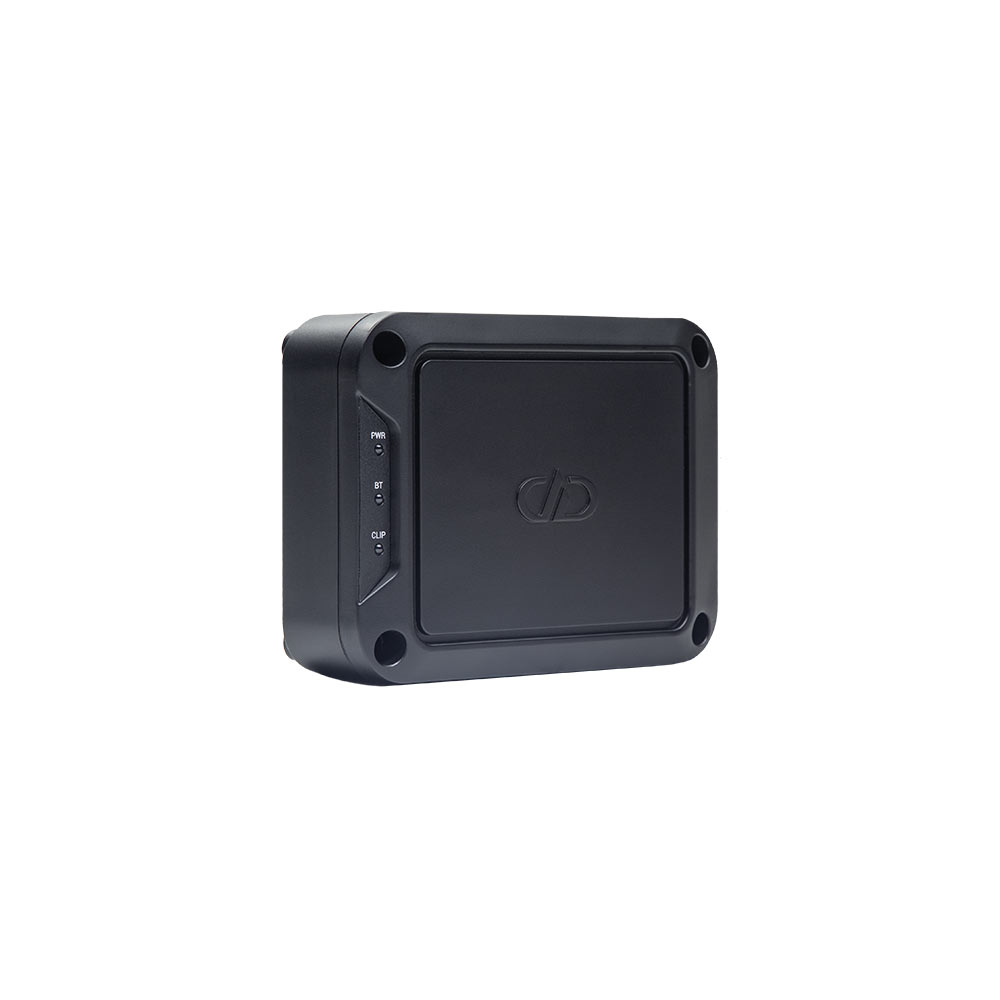

DD DSI-X2
8 Channel DSP Processor /Built in Bluetooth
$1,999.00TT
Price VAT Inclusive
Description
Specifications
Description
- Waterproof Rated IPX7

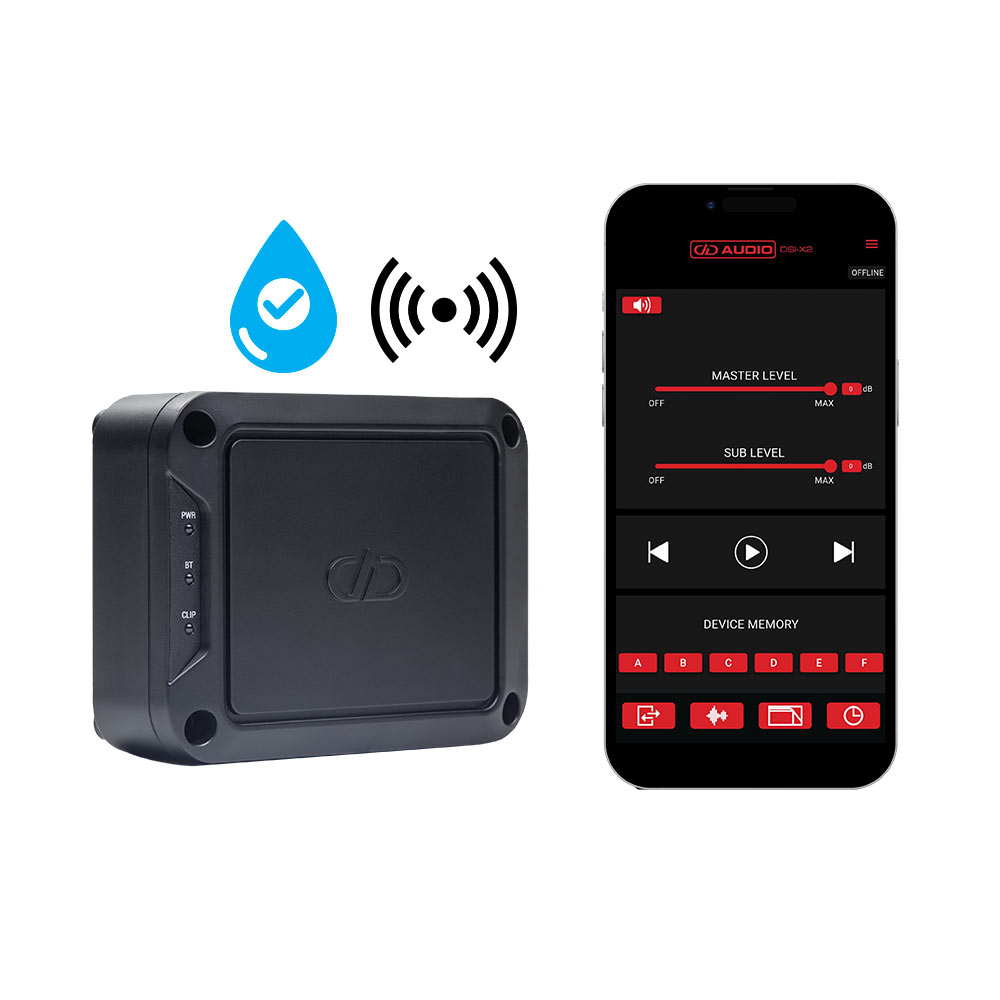

- Android and IOS App Control
- Bluetooth Compatible

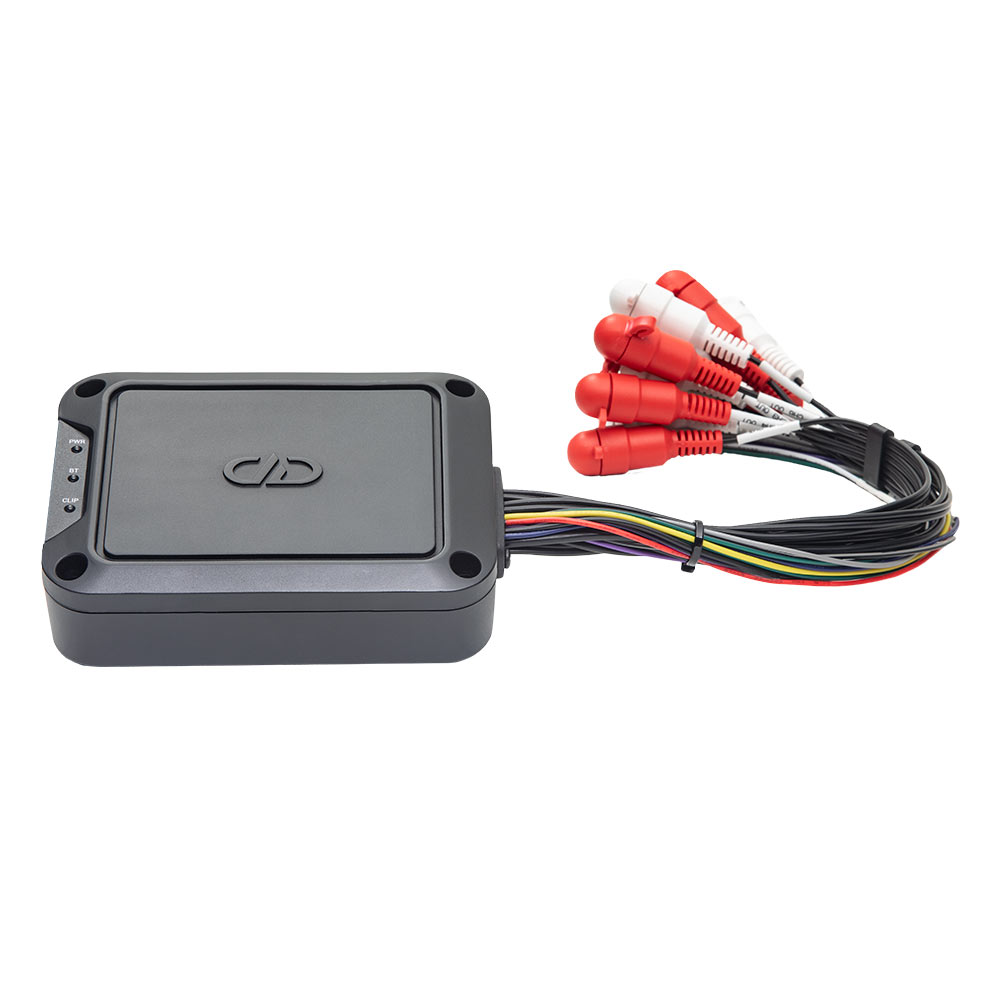

- 4 High-Level Inputs and 4 Low-Level RCA inputs
- 8 Low-Level RCA outputs
- 6 Customizable Presets
- 15 Band Parametric Equalizer

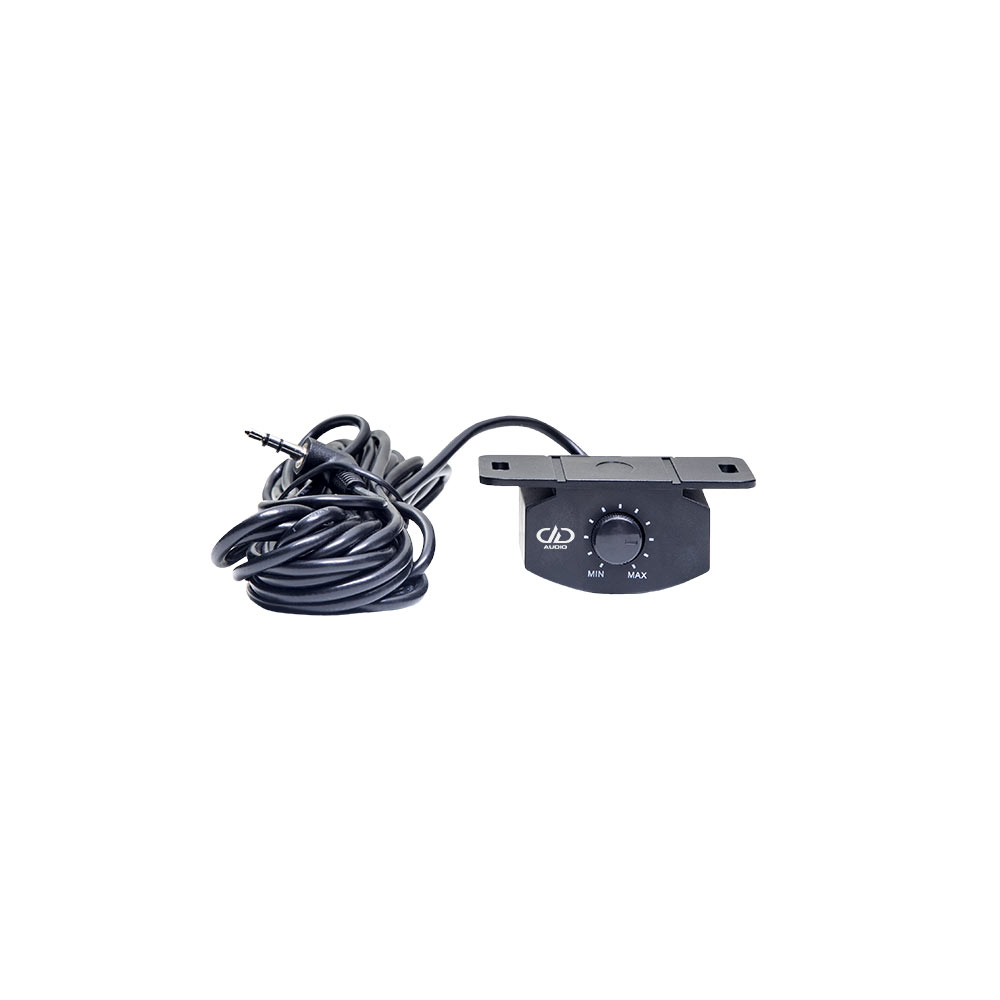

- Master Volume Control Knob Included
- Phase Correction
- Crossover Type, Frequency, and Slope Adjustments
- Automatic Time Alignment Distance Calculations
The DSI-X2 isn’t just another DSP, it’s a waterproof, IPX7 rated digital signal interface designed to bring next-level control and clarity to any audio setup. With 8 channels of output, intuitive input mixing, a 15-band parametric EQ, and automatic time alignment calculations, this unit makes dialing in your sound simple and precise without the steep learning curve. Its upgraded processing keeps noise and distortion virtually undetectable, even on the most sensitive compression tweeters.
Built for harsh conditions and real-world installs, the DSI-X2 is ready for any adventure build, giving you full control over your system no matter where the road, trails or waves take you.
Specifications
Operating Voltage
9 – 17 Vdc
Input Channel
4
Output Channel
8
RCA Input Voltage Sensitivity
4 Vrms
High-Level Input Voltage Sensitivity
4 Vrms
RCA Input S/N
>100 dB
High-Level Input S/N
>100 dB
THD
<0.01%
Remote Controller Included
RCA Output Impedance
220 Ω
RCA Output Voltage
8 Vrms
Parametric / Graphic EQ
15 Bands
Bit Depth
24bit
Sampling Frequency
48kHz
Remote Out Current
100mA
RCA Input Impedance
25 KΩ
High-Level Input Impedance
20 KΩ
Idle Current
<500 mA
Dimensions (In)
4.9 x 3.5 x 1.5
Dimensions (MM)
125 x 90 x 37
