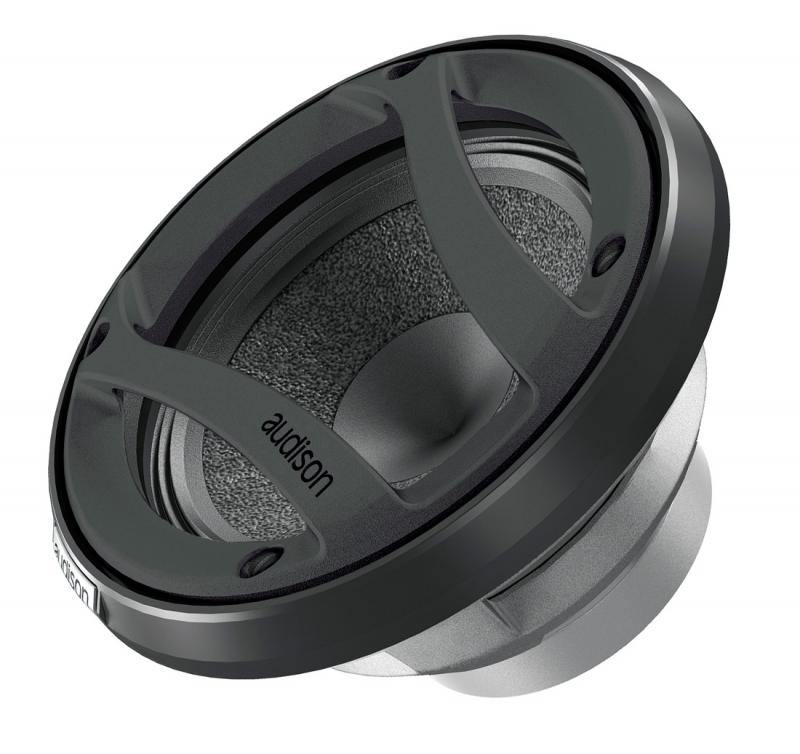

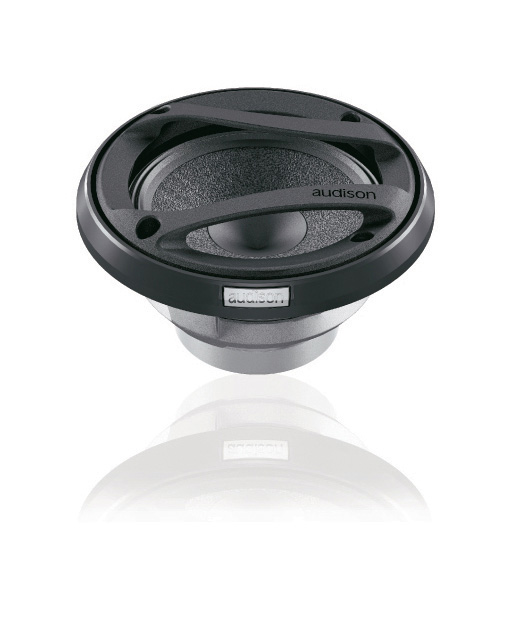

Audison AV 3.0
50 RMS 3 Neo inch Midrange
$1,399.00 TT
Price Vat Inclusive
Description
Specifications
Description
- The profile of the aerodynamic basket’s spokes,
along with the open-air design, ensures drastic
reduction of back-wave reflections. - The exclusive Triple Wave surround profile and
selected materials provide full linearity as well as
reliable performance under extreme conditions. - Extremely lightweight and compact, the CCAW
(Copper Clad Aluminium Wire) voice coils wound
on dowble layer provide very high efficiency and
neat, dynamic sound. - Cotton-fibre pressed paper cone with Light
Damping treatment. - The Radial Venting System ensures high thermal
capability, power handling and reliability. - High flux density Neodymium magnet, for to
flatter impedance and extend the frequency response. - The central pole piece is covered with a pure
copper sleeve to provide linear impedance and wide
frequency response.
Specifications
| ominal diameter | 70 mm (3 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 100 W |
| Power Handling – Continuous | 50 W |
| Sensitivity | 93 dB |
| Frequency Response | 200 ÷ 14k Hz |
| Voice Coil Ø | 20 mm (0.75 in) |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 45 x 25 x 4 mm |
| Voice Coil Material | CCAP – COPPER CLAD ALLUMINIUM RIBBON |
| Xmax | 2 mm (0.08 in) |
