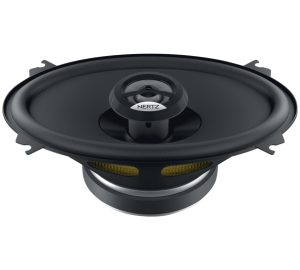

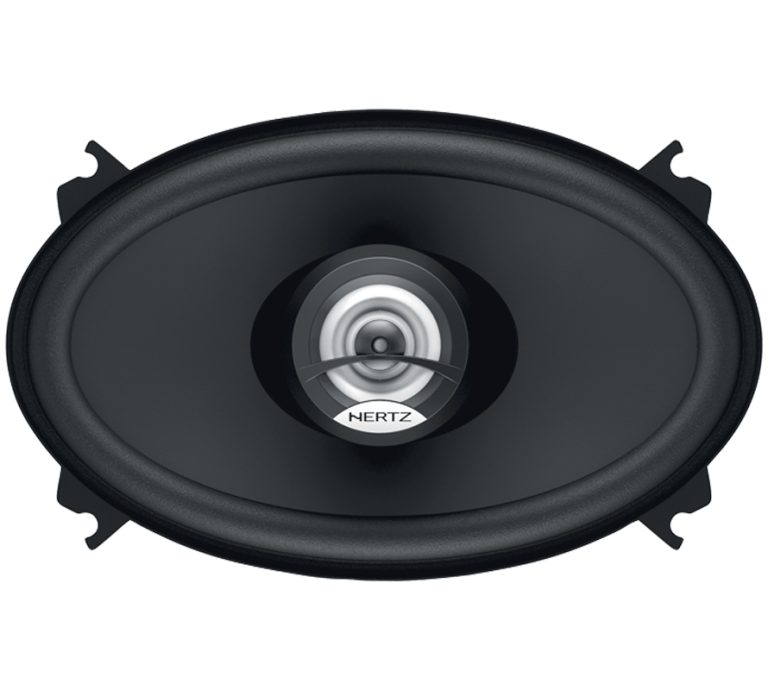

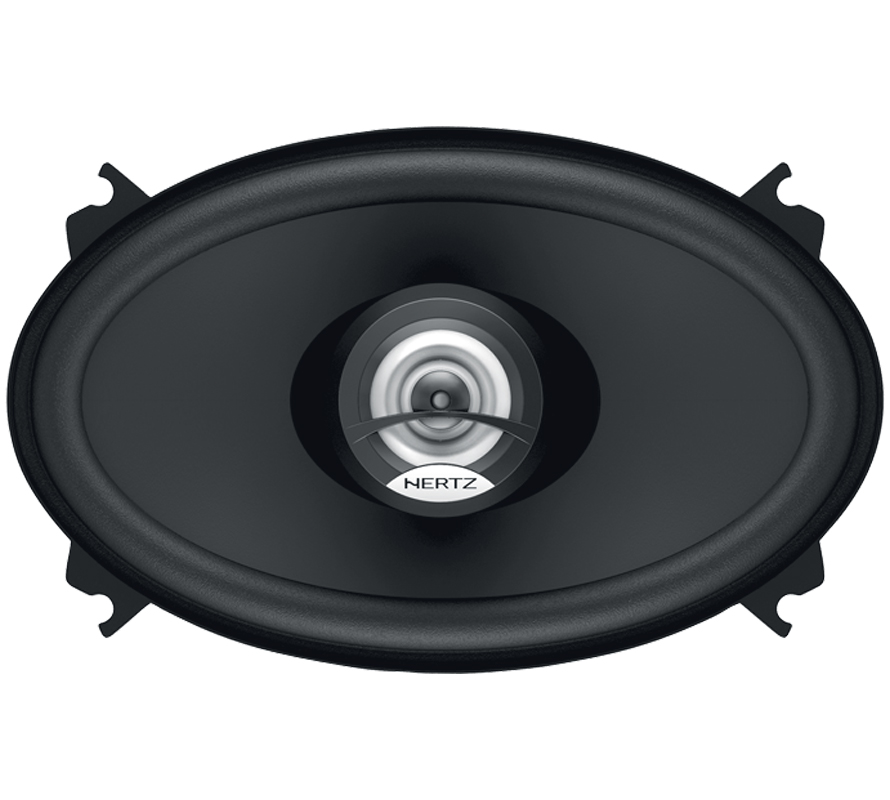

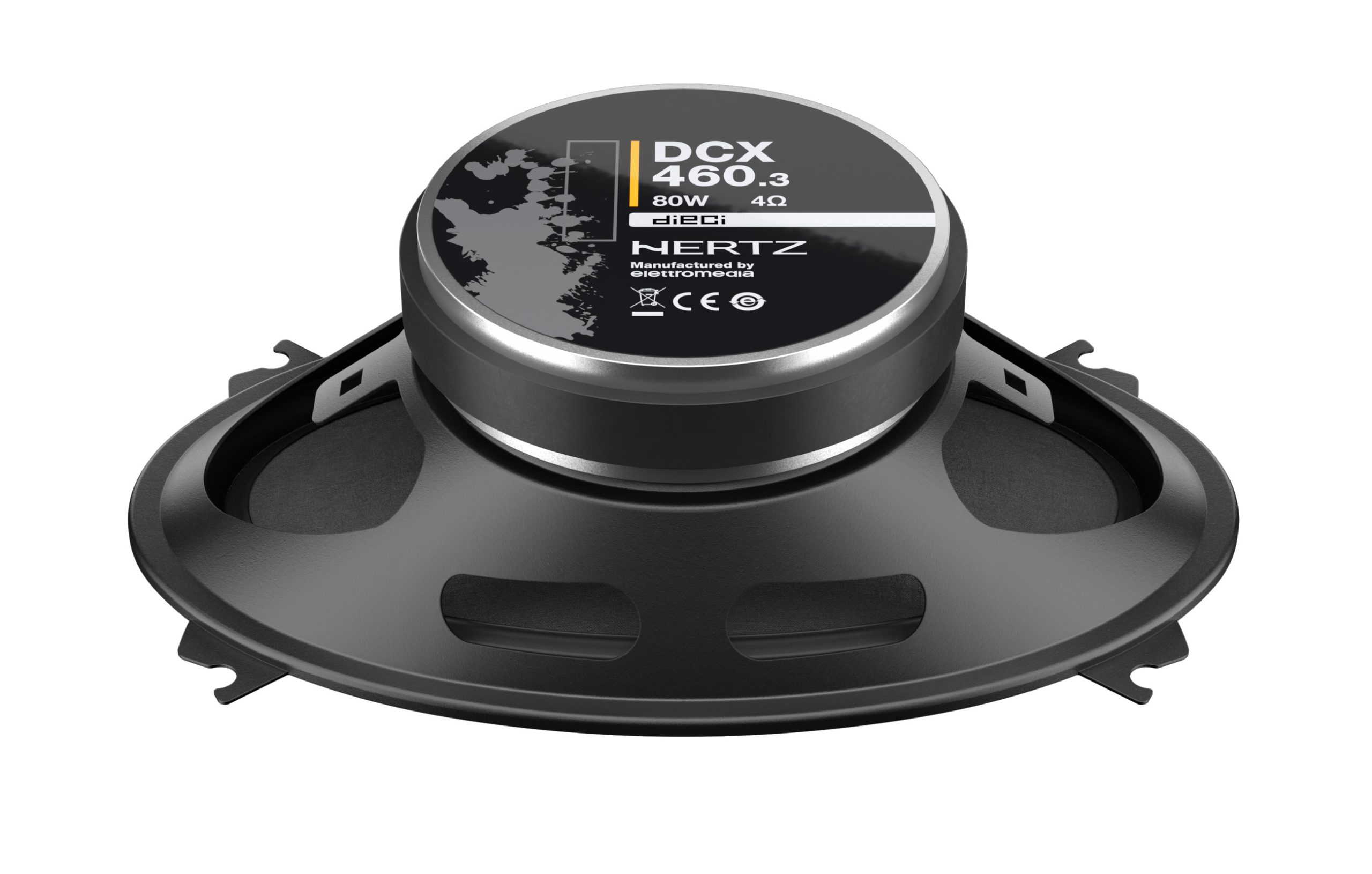

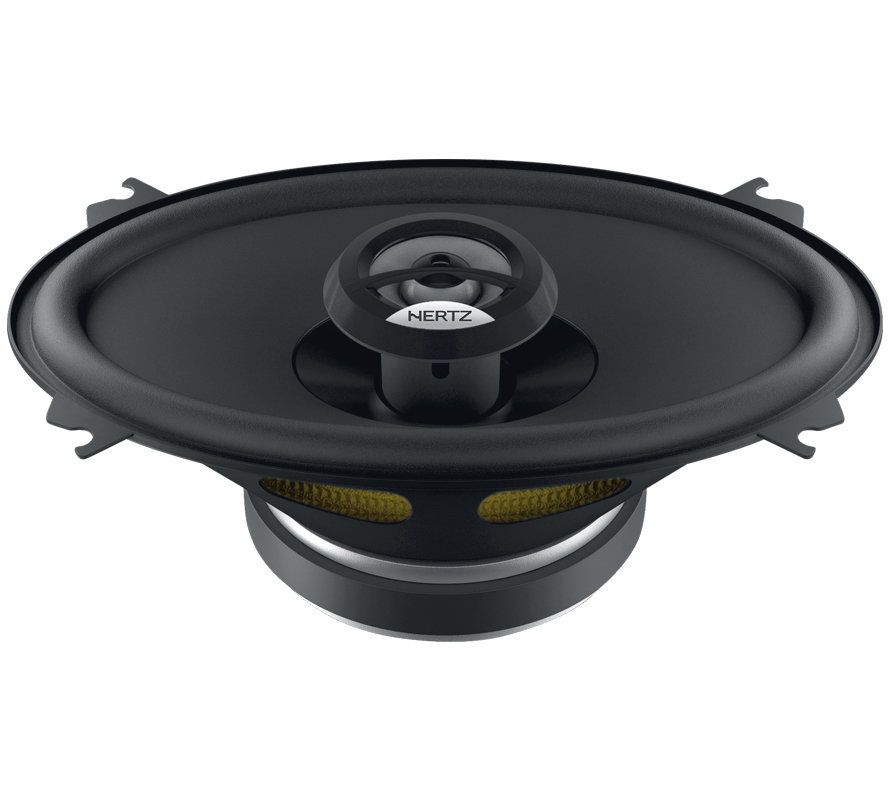

Hertz DCX 460.3
50 RMS 4X6 Speaker
$649.00 TT
Price VAT Inclusive
Description
Specifications
Description
1. Large motor assembly for mobile voice coil control.
2. Pure copper voice coil, wound on conex former, for maximum lightness.
3. Water-repellent treated paper cone.
4. TPU surround, for wide excursion and resonance damping.
5. Neodymium tweeter with PEI dome, for compactness and energy at high
frequencies.
6. DIN size basket protected by abrasion-proof dust paint.
7. Tin-plated, high current terminals.
8. Silver-plated lead wires for maximum reliability and conductivity.
9. Epoxy glue for basket and motor system provides perfect coupling.
10. Low carbon content plates for maximum magnetic permeability and high
heat dissipation.
Specifications
Technical Specs LF
| Woofer Size | 460 mm |
| Impedance | 4 Ohm |
| Power Handling – Peak | 80 W |
| Power Handling – Continuous | 40 W |
| Elliptical Size | 4 x 6 |
| Sensitivity | 93 dB |
| Frequency Response | 65 ÷ 21k |
| Voice Coil Diameter | 25 mm (0.98 in) |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet Size | 80 x 32 x 10 mm |
| Cone Material | WATER REPELLENT PRESSED PAPER |
| Xmax | 2 mm (0.08 in) |
Technical Specs HF
| Tweeter Size | 15 mm (0.59 in) |
| Dome Material | PEI |
| Magnet Material | NEODYMIUM |
Electric-acoustic Specs
| Re | 3.3 Ohm |
| Fs | 90 Hz |
| Mms | 6 g (0.21 oz) |
| Cms | 0.41 |
| Bl | 3.8 |
| Qms | 5.2 |
| Qes | 0,92 |
| Qts | 0.79 |
| Vas | 6.2 l (0.22 ft) |
