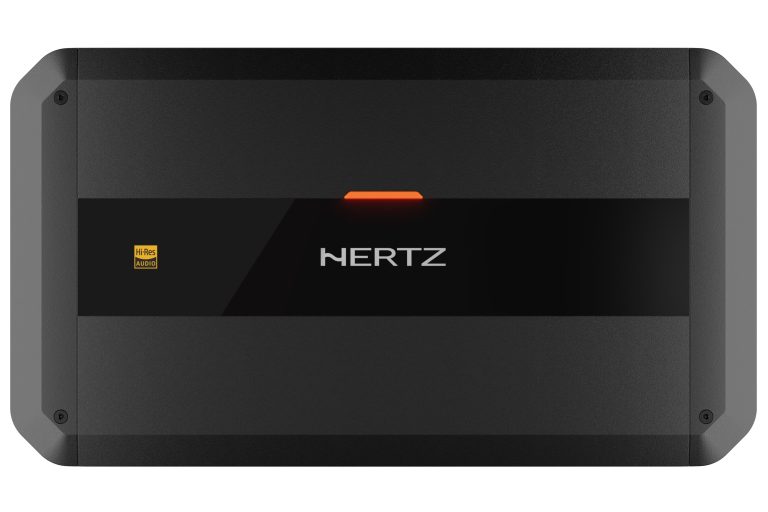

Hertz DP4.400
500W RMS 4 Channel Class AB Amplifier
$1,999.00TT
Price VAT Inclusive
Hertz DIECI POWER amplifier DP 4.400 is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision. Despite its compact size, the DP 4.400 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint. The amplifier’s aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior. Universal compatibility is a key feature of the DP 4.400, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources. Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences. Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system. Whether utilizing Speaker-In or Pre-In level inputs, the DP 4.400 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 4.400 – where power, precision, and style converge for an unparalleled listening experience on the road.
| Channels | 4 |
| Class | AB Class |
| Efficiency | 60% |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Operating power supply voltage | 11 ÷ 15 VDC / 2 x 25 A |
| Idling current | 0.85 A |
| Idling current when off | 0.01 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 30 A |
| Remote IN | 4 ÷ 15 VDC (1.5 mA) |
| ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1,5 VDC |
| Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power | 0.01% |
| Bandwidth A | 10Hz ÷ 45kHz |
| S/N ratio A | 101 dBA |
| Damping factor A | 130 |
| Input sensitivity Pre-In | 0,32 ÷ 8 VRMS |
| Input sensitivity Speaker-In | 1,6 ÷ 40 VRMS |
| Total Power RMS | 1000 W |
| Minimum load impedance | @ 3Ch: 2 Ω + 2 Ω + 4 Ω @ 2Ch: 4 Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 75 W x 4 (4Ω) 105 W x 4 (2Ω) 75 W x 2 (4Ω) + 210 W x 1 (4Ω) 105 W x 2 (2Ω) + 210 W x 1 (4Ω) 210 W x 2 (4Ω) |
| Output Power (RMS) @14.4 VDC, 10% THD | 90 W x 4 (4Ω) 125 W x 4 (2Ω) 90 W x 2 (4Ω) + 250 W x 1 (4Ω) 125 W x 2 (2Ω) + 250 W x 1 (4Ω) 250 W x 2 (4Ω) |
| Adjustable Crossover | Yes |
| Input Type | Pre-In / Speaker-In |
| Filters Outputs | Pre Out Full Range – (Front) |
| Filter Pass A | Front Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct. |
| Filter Pass B | Front Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct. |
| Filter Pass C | Rear Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct. |
| Filter Pass D | Rear Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct. |
| Bass Boost | 0 ÷ 9 dB |
| Operating temperature range | -20 °C ÷ 60 °C (-4 °F ÷ 140 °F) |
