HERTZ DP 1.500
500 RMS 2 ohms Mono Block Amplifier
$ 1,899.00 TT
Price VAT Inclusive
Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.
Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

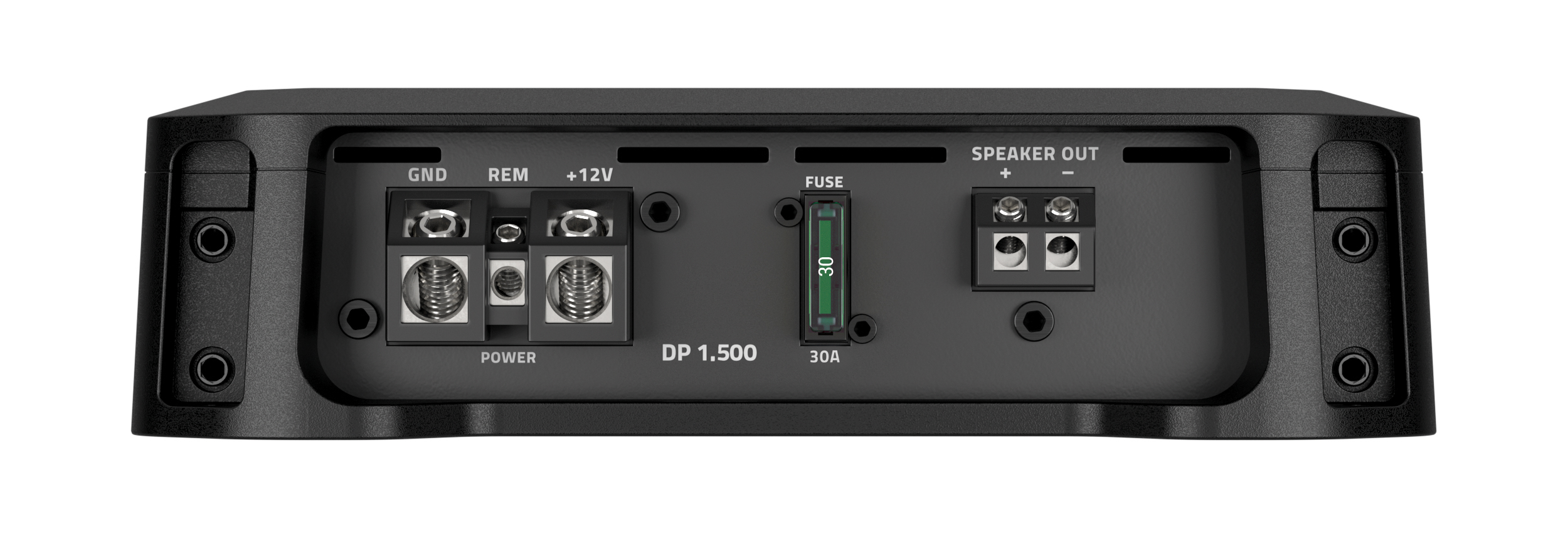

The amplifier’s aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.
Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
The optional HRC 02 Remote Control Ready provides the ability to tune the subwoofer level for any preference.
Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.
| Channels | 1 |
| Class | D-Class |
| Efficiency | 86% |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Operating power supply voltage | 11 ÷ 15 VDC (1 x 30 A) |
| Idling current | 1 A |
| Idling current when off | 0.05 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 21 A |
| Remote IN | 4 ÷ 15 VDC (1.5 mA) |
| ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 VDC |
| Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power | 0,2% |
| Bandwidth A | 10Hz ÷ 500Hz |
| S/N ratio A | 99 dBA |
| Damping factor A | 180 |
| Input sensitivity Pre-In | 0.32 ÷ 8 VRMS |
| Input sensitivity Speaker-In | 1.6 ÷ 40 VRMS |
| Total Power RMS | 1180 W |
| Minimum load impedance | 2 Ω |
| Output Power (RMS) @14.4 VDC, 1% THD | 280 W x 1 (4Ω) 500 W x 1 (2Ω) |
| Output Power (RMS) @14.4 VDC, 10% THD | 350 W x 1 (4Ω) 590 W x 1 (2Ω) |
| Adjustable Crossover | Yes |
| Input Type | Pre-In / Speaker-In |
| Filters Outputs | Pre Out Full Range |
| Filter Pass A | Lo-Pass: OFF / 50 ÷ 250 Hz @ 24 dB/Oct. |
| Phase | 0 / 180° |
| Bass Boost | 0 ÷ 9 dB |
| Subsonic | OFF / 25 Hz @ 24 dB/Oct. |
| Remote Sub Volume | -20 ÷ 6 dB |
| Operating temperature range | -20 °C ÷ 60 °C (-4 °F ÷ 140 °F) |
