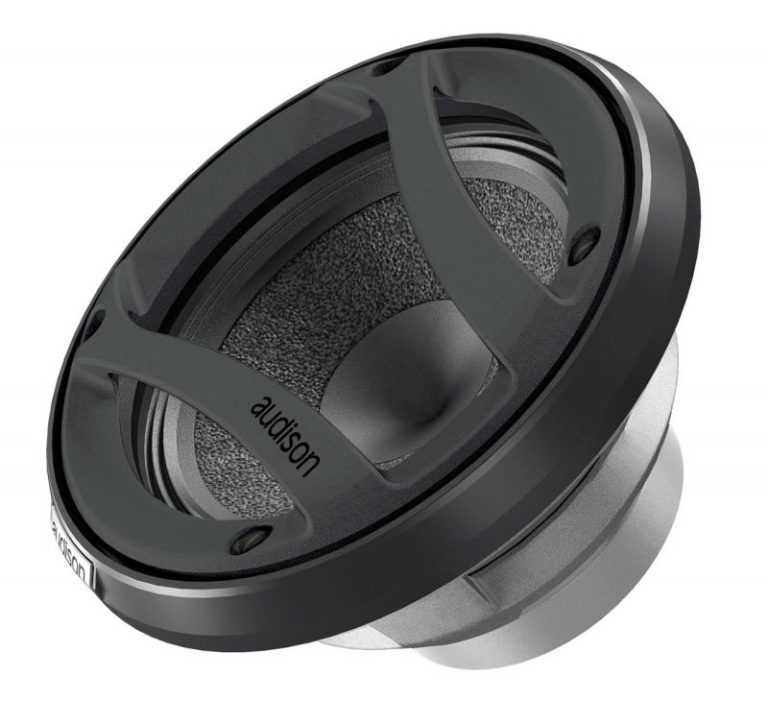

Audison AV 3.0
50 RMS 3 Inch Neo Midrange
$1,399.00 TT/ Pair
Price VAT Inclusive
Description
Specifications
Description
The core of the AV 3.0 midrange is a powerful Neodymium magnetic group: efficiency and linearity make it an irreplaceable component to achieve a fine yet dynamic mid range, while its compact size allows versatile and high-performance installations.Grille included.
- The profile of the aerodynamic basket’s spokes,
along with the open-air design, ensures drastic
reduction of back-wave reflections. - The exclusive Triple Wave surround profile and
selected materials provide full linearity as well as
reliable performance under extreme conditions. - Extremely lightweight and compact, the CCAW
(Copper Clad Aluminium Wire) voice coils wound
on dowble layer provide very high efficiency and
neat, dynamic sound. - Cotton-fibre pressed paper cone with Light
Damping treatment. - The Radial Venting System ensures high thermal
capability, power handling and reliability. - High flux density Neodymium magnet, for to
flatter impedance and extend the frequency response. - The central pole piece is covered with a pure
copper sleeve to provide linear impedance and wide
frequency response.
Specifications
| Nominal diameter | 70 mm (3 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 100 W |
| Power Handling – Continuous | 50 W |
| Sensitivity | 93 dB |
| Frequency Response | 200 ÷ 14k Hz |
| Voice Coil Ø | 20 mm (0.75 in) |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 45 x 25 x 4 mm |
| Voice Coil Material | CCAP – COPPER CLAD ALLUMINIUM RIBBON |
| Xmax | 2 mm (0.08 in) |
Electric-acoustic Specs
| Re | 3 Ohm |
| Fs | 160 Hz |
| Le | 0.12 mH |
| Vas | 0.4 l (0.014 ft) |
| Mms | 4.4 g (0.155 oz) |
| Cms | 0.24 mm/N |
| BL | 4.1 T•m |
| Qts | 0.64 |
| Qes | 0,74 |
| Qms | 4.7 |
General
| Weight | 0.3 kg |
Dimensions
| Dimension A | 88 mm (3.46 in) |
| Dimension B | 73 mm (2.87 in) |
| Dimension C | 41 mm (1.61 in) |
| Dimension D | 38 mm (1.5 in) |
| Dimension E | 80 mm (3.15 in) |
| Dimension G | 18.5 mm |
| Dimension H | 102 mm |
