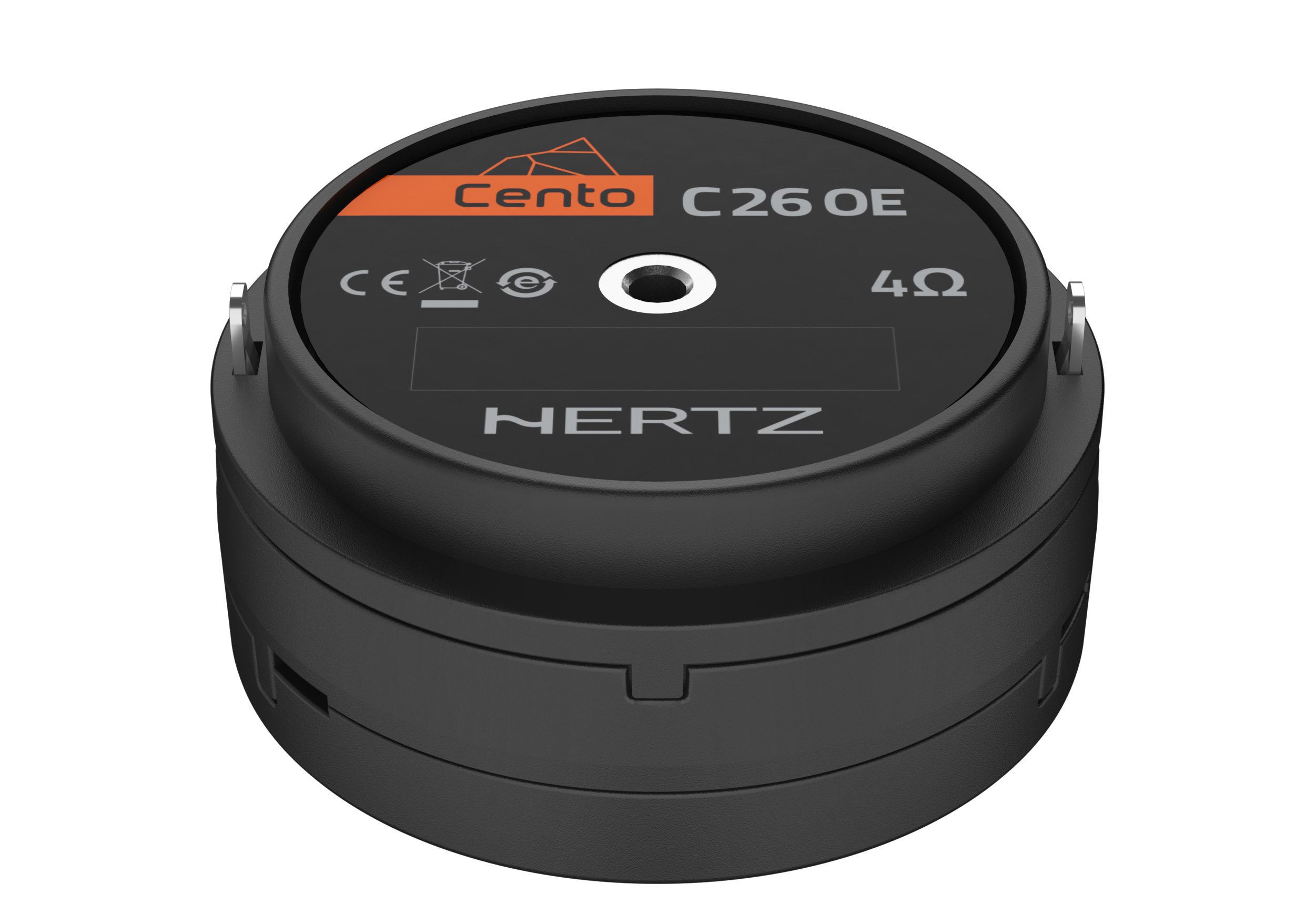

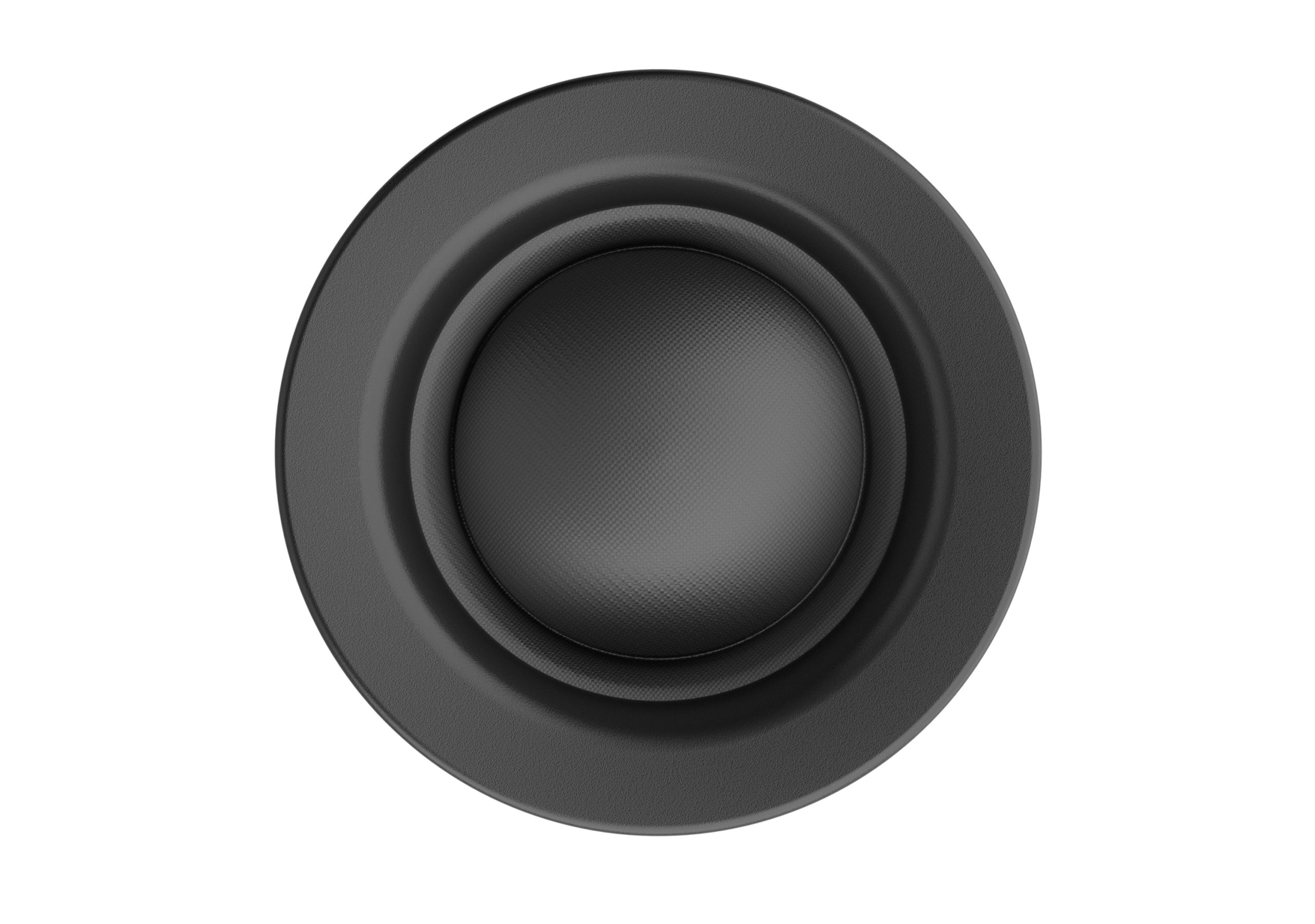

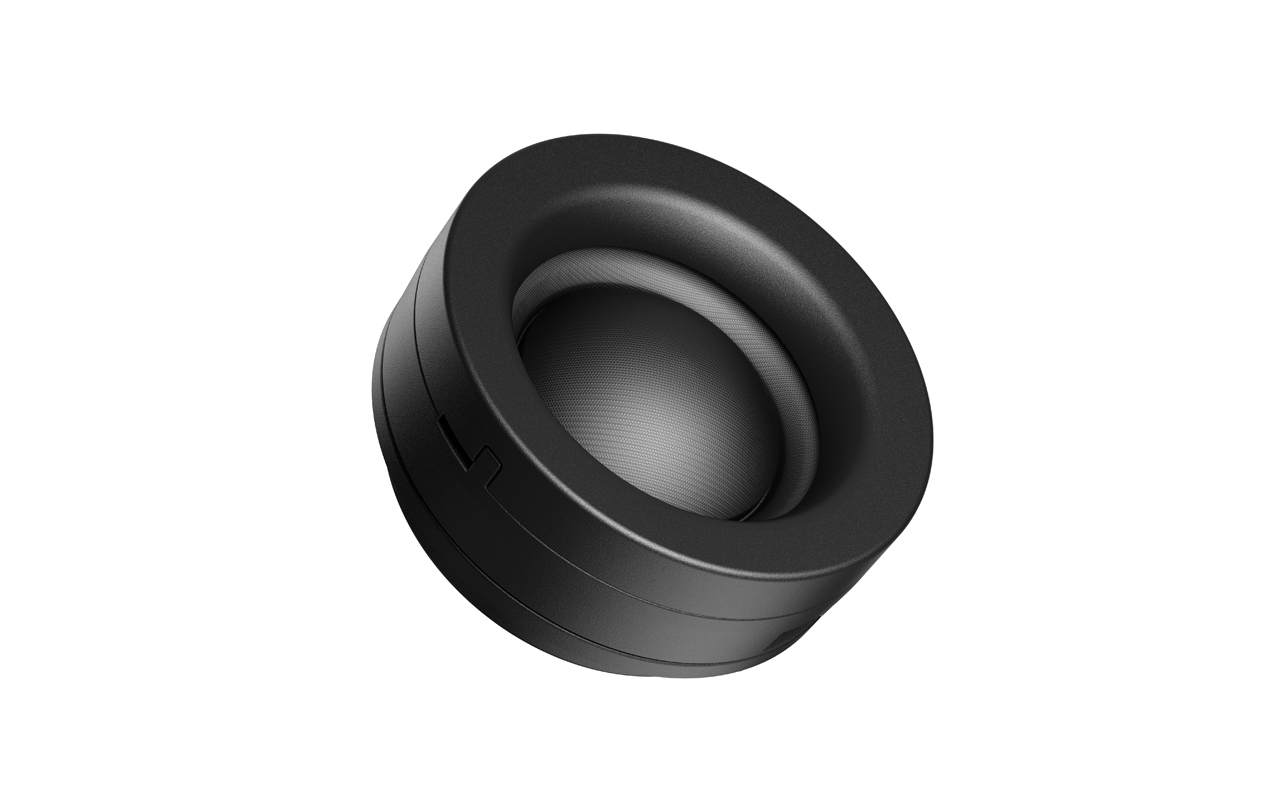

Hertz C 26 OE
60 RMS 1" Soft Tefelon Dome Tweeter
$675.00TT/Pair
Price VAT Inclusive
C 26 OE tweeter features a FEM (Finite Element Method) geometry designed to maximize performances when the tweeter is installed in the OEM placement.
1. Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
2. Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
3. Geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in OEM placement installations.
4. Provided cable with built-in 6 dB/Oct. crossover designed to save space in a OEM upgrade scenario.
5. Wide range of accessories, for easy integration in OEM placements.
C 26 OE includes a provided cable with built-in 6 dB/Oct. crossover designed to save space in a OEM upgrade scenario and mounting accessories.
| Nominal diameter | 26 mm (1 in) |
| Impedance | 4 Ohm |
| Power Handling – Peak | 120 W |
| Sensitivity | 92 dB |
| Frequency Response | 1.8k ÷ 22.5k Hz |
| Voice Coil Ø | 20 mm (0.79 in) |
| Magnet Material | NEODYMIUM |
| Magnet size D x d x h | 19 x 0 x 3 mm |
| Dome Material | TELOTON FIBRE |
| Power Handling Crossover | (Hi-Pass filtered @ 2,5kHz – 12 dB Oct.) |
| Re | 3.7 Ohm |
| Fs | 1500 Hz |
| Le | 0.02 mH |
| Mms | 0.17 g (0.006 oz) |
| Cms | 0.07 mm/N |
| BL | 1.3 T•m |
| Qts | 1.6 |
| Qes | 3,5 |
| Qms | 2.9 |
| Mounting Depth | 4.36 mm |
| Grilles Included | No |
| Total Weight | 0.04 kg (0.088 lb) |
